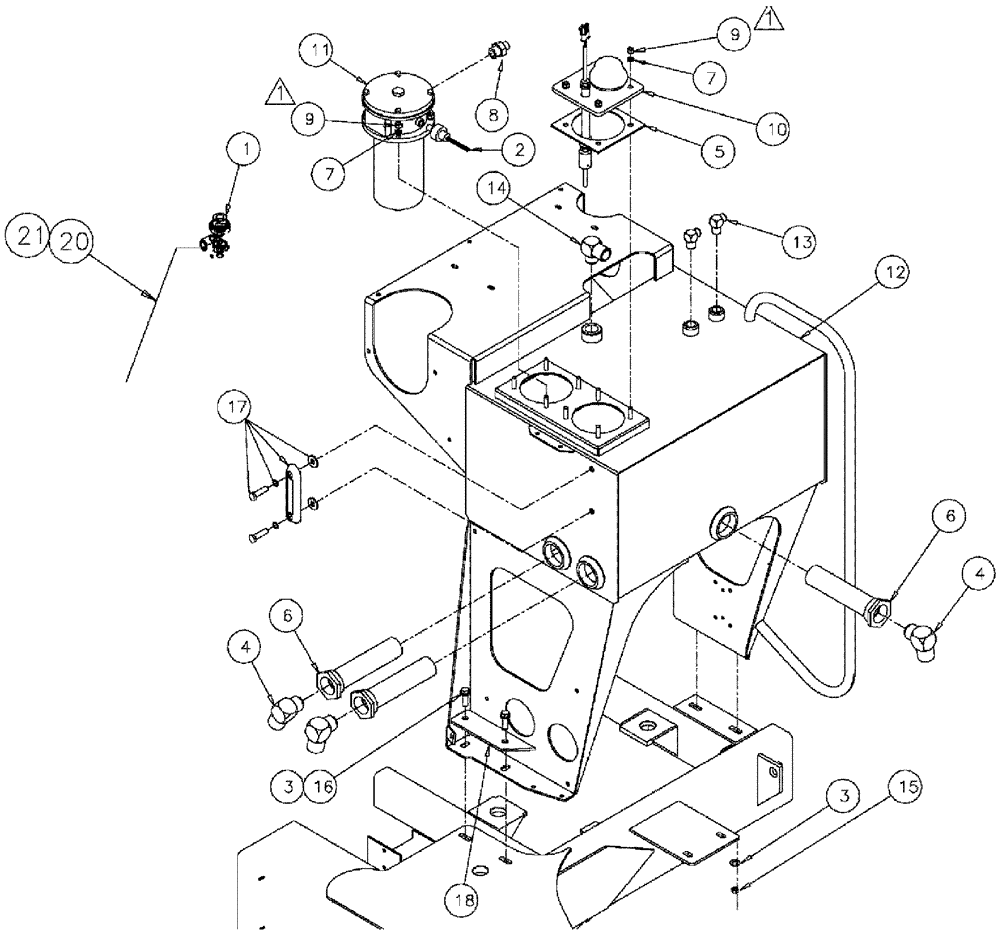

Запчасти Case IH 3210 (06-011) - OIL TANK GROUP Hydraulic Plumbing

1

87105048

DRAINCOCK/TAP SUPPLY

Valve, Hydraulic

1шт.

2

87267808

PRESSURE SWITCH

25 psi N/C

1шт.

3

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

4

BN302577

ELBOW

20MOR 20MB X 90

3шт.

5

87272095

GASKET,3.17mm Thk

COVER PLATE

1шт.

6

BN303528

STRAINER ASSY.

32MBX 20FB, 100

3шт.

7

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

8шт.

8

BN55352

ADAPTER

ORXJIC 20-16

1шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

10

87633839

SENSOR

Level Temp Switch Group

1шт.

See Fig. 06-012

1шт.

11

87267807

HYDRAULIC OIL FILTER

Oil In-Tank SPX

1шт.

See Fig. 06-021

1шт.

12

87272047

TANK

oil

1шт.

13

BN445001

FITTING

12MJ 12MB X 90

2шт.

14

BN51621

FITTING

16MJ 16MB X 90

1шт.

15

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

16

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

17

BN322594

GAUGE

sight with temperature

2шт.

18

BN300172

PLATE

1шт.

20

129096A1

HOSE

Reservoir Drain

1шт.

21

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.
