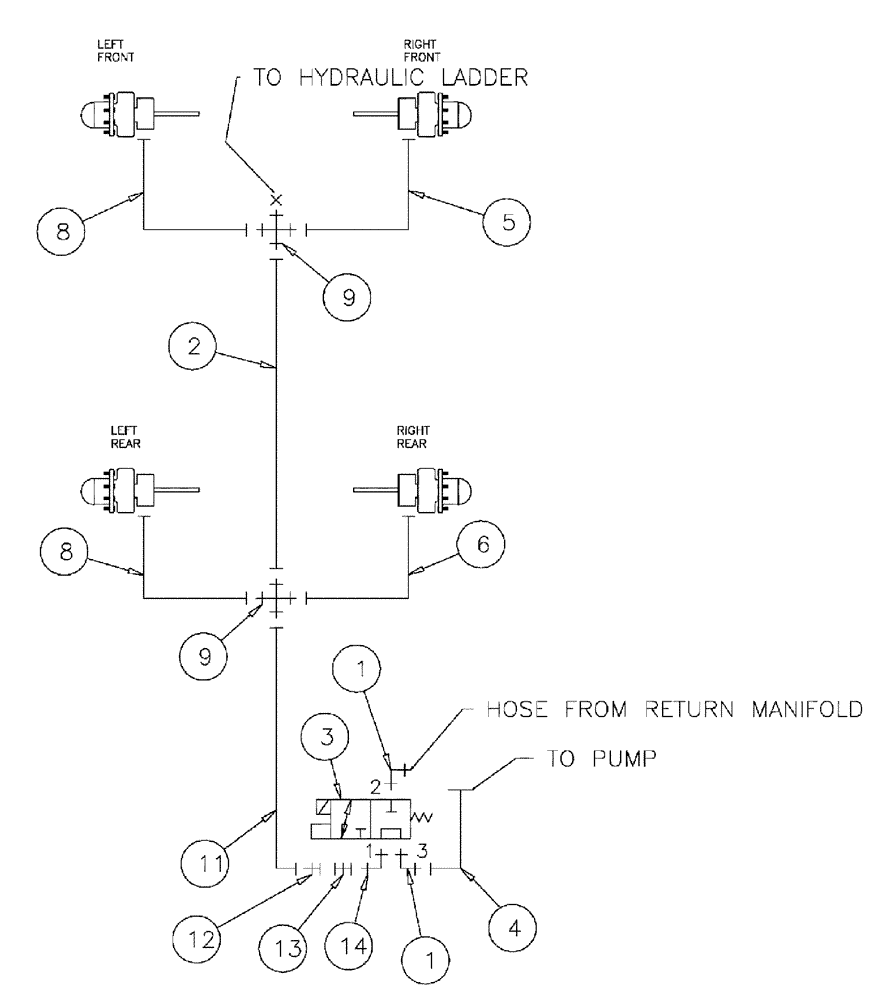

Запчасти Case IH 3210 (06-005[01]) - PARK BRAKE GROUP Hydraulic Plumbing

1

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

2шт.

2

87272040

HOSE

4 X 154"

1шт.

3

87271739

VALVE SECTION

Brake, With Deutsch - See figure 06-005(02) for service parts

1шт.

4

BN55113

HOSE

1/4" x 144", 100R1

1шт.

5

87272041

HOSE

4 X 175"

1шт.

6

87272038

HOSE

4 X 161"

1шт.

8

87272039

HOSE

4 X 154"

2шт.

9

BN302462

FITTING

4MOR-4MOR-4MOR-4MOR

2шт.

11

87272043

HOSE

4 X 15"

1шт.

12

BN307992

COUPLING

DIAGNOSTIC, 4M NPT

1шт.

13

BN307993

NIPPLE, LUBE

NIPPLE DIAGNOSTIC, 6FFOR

1шт.

14

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

1шт.
