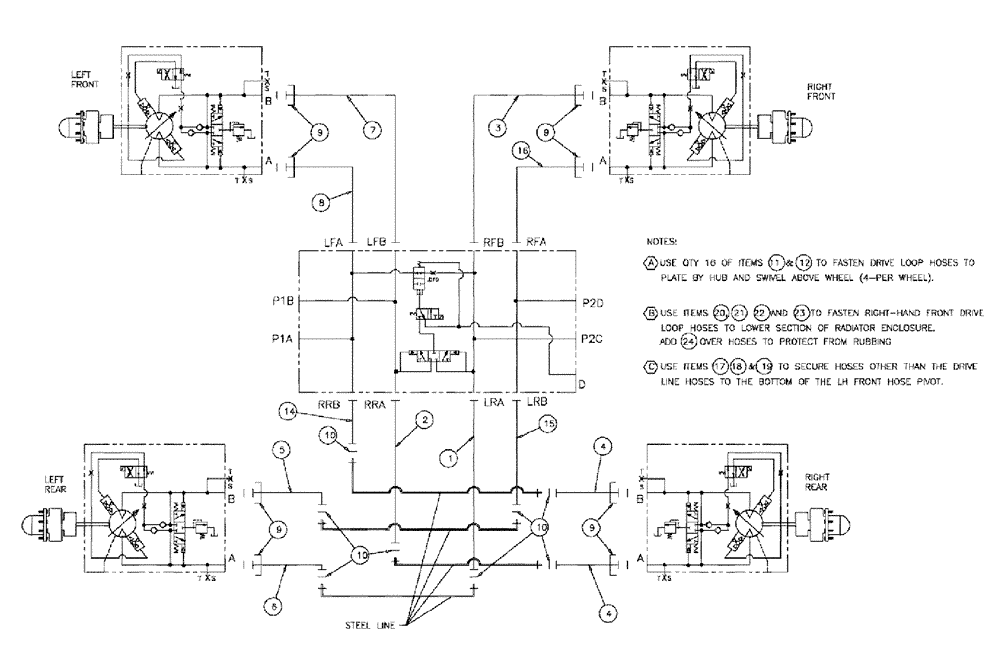

Запчасти Case IH 3210 (06-003) - HYDRAULIC DRIVE LOOP GROUP Hydraulic Plumbing

1

BN315470

HOSE ASSY.

16 X 22"

1шт.

2

BN315471

HOSE ASSY.

16 X 27"

1шт.

3

87271773

HOSE

12 X 210

1шт.

4

87272011

HOSE

12 X 110

2шт.

5

87272012

HOSE

12 X 110

1шт.

6

87272013

HOSE

12 X 112

1шт.

7

87272014

HOSE

12 X 128

1шт.

8

87272015

HOSE

12 X 130

1шт.

9

BN52315

KIT

1" Split Flange Code 62

8шт.

10

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ARP 021 BUNA-N

8шт.

11

BN57235

CLAMP

Assy, 1"

16шт.

12

86632587

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

18шт.

14

BN318762

HOSE ASSY.

16 X 19.50"

1шт.

15

BN318763

HOSE ASSY.

16 X 24.50"

1шт.

16

87271774

HOSE

12 X 202

1шт.

17

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

1шт.

18

87343957

NUT,1/4" - 20

Hex, 1/4"-20, GB

1шт.

19

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

20

BN309849

CLAMP

DUAL, 1.25 TUBE

1шт.

21

BN309848

SCREW,Hex, 5/16" - 18 x 3", SST

1шт.

22

BN309850

PLATE

5 SS

1шт.

23

BN55361

NUT,5/16"-18, Nylon, Stainless

1шт.

24

BN322743

SLEEVE

HOSE, 2.38 ID X 18

2шт.
