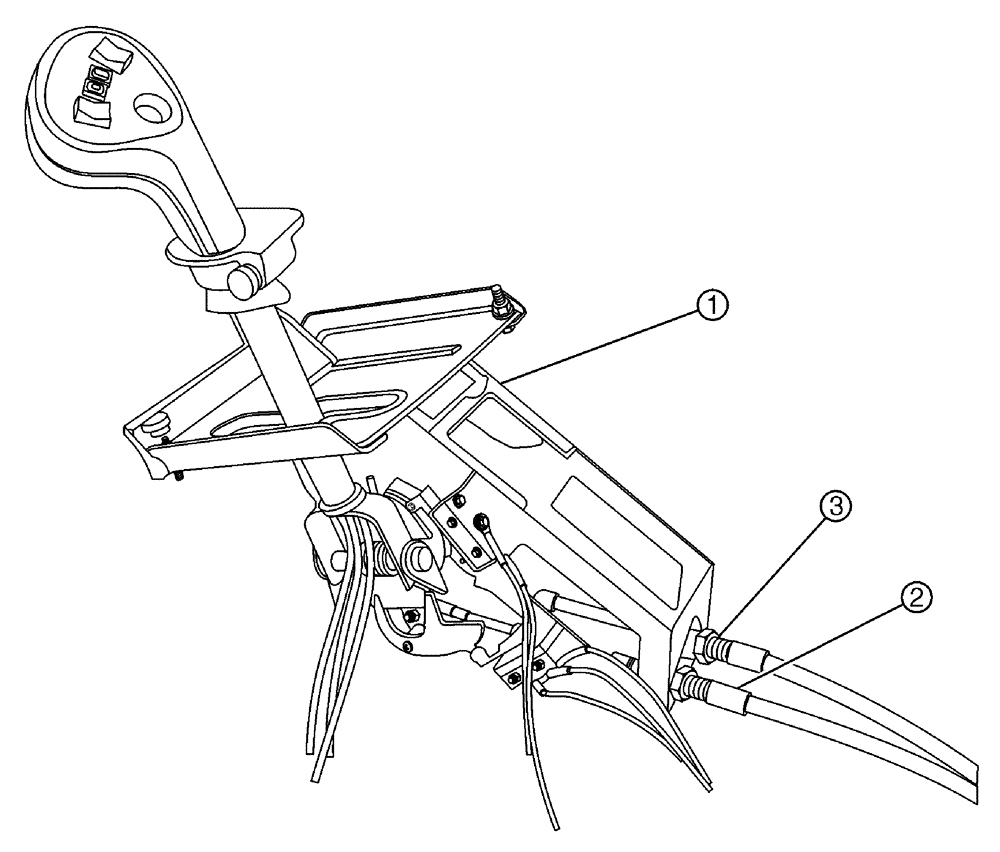

Запчасти Case IH 3210 (01-013) - SHIFT, THROTTLE CONTROL GROUP Cab Interior

1

87270574

THROTTLE ASSY, 96-1/2

1шт.

See Fig. 01-005

1шт.

2

BN29256

CABLE,2438.4mm L

Control, 96"

1шт.

3

BN29257

CABLE,Throttle Cable, 2133.6mm L

Control, 84"

1шт.

+

BN66132

GROMMET

strain relief-bat.

2шт.

Associated Part of Cable Control (84"), P/N BN29257

1шт.

4

BN29258

CLEVIS

Assembly With Pin

1шт.

Not Shown

1шт.

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

87270519

WIRE HARNESS

PROP HNDLE RETRO

1шт.
