Запчасти Case IH 3210 (01-010) - STEERING ASSEMBLY Cab Interior

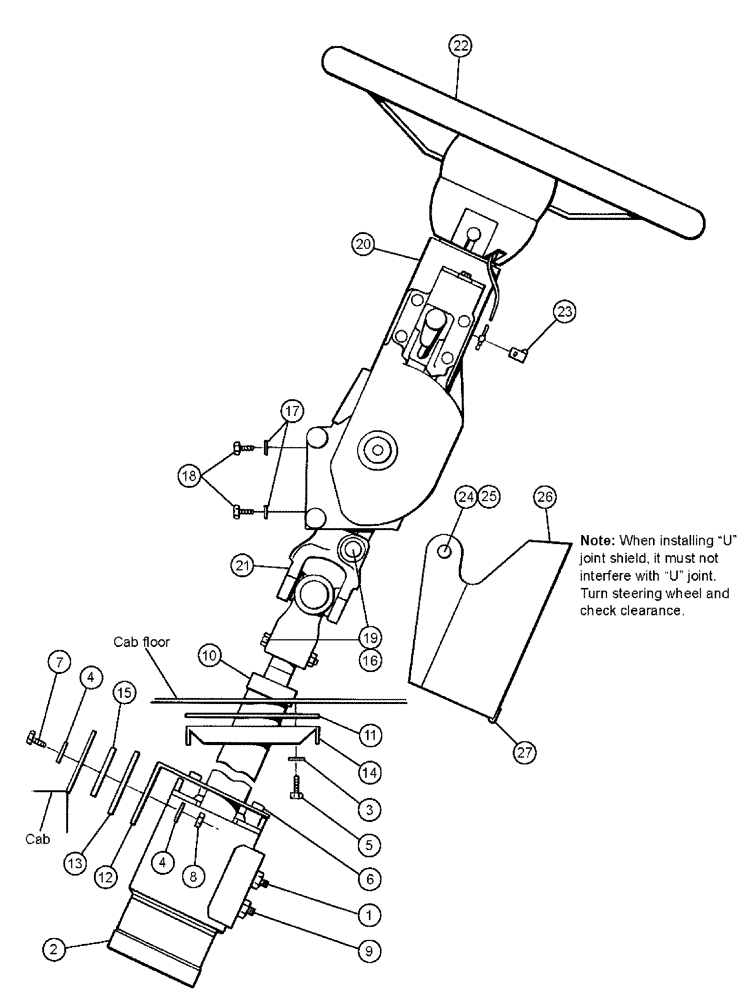

Схема запчастей Case IH 3210 - (01-010) - STEERING ASSEMBLY Cab Interior
16
13
4
26
7
1
10
17
6
24
11
4
18
14
20
21
3
12
8
9
19
25
15
23
22
27
2
5

Артикул

Название

Примечание

Количество

1

BN21249

ADAPTER,3/4" - 16 ORFS x 7/16" - 20 JIC

2шт.

2

BN323097

PUMP

Orbitrol, 11.3 Disp

1шт.

3

BN50141

WASHER

5/16, FW, G5

4шт.

4

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

4шт.

5

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

6

87342763

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Hex, 3/8"-16 x 3/4", G5

4шт.

7

50304

BOLT Hex, 1/2"-20 x 1 1/2", G5, Full Thd

2шт.

8

86992215

LOCK NUT,1/2"-13, GC

2шт.

9

BN57226

ADAPTER

fitting, o-ring, 37 FL 8-6S

2шт.

10

BN65948

STEERING COLUMN

18"

1шт.

11

BN66268

RUBBER SEAL

RUBBER SEAL 1/8" EPDM 5 X 6

1шт.

12

BN66273

MOUNTING PARTS

1/4 HRS 6.87 X 8

1шт.

13

BN66274

RUBBER SEAL

1/4 EPDM, 2.5 x 8

1шт.

14

BN66276

MOUNTING PARTS

14 GA HRS 6.25 X 7.25

1шт.

15

BN69007

SPACER

Plate

1шт.

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

16

87343970

NUT,3/8"-16, G8, DOR

2шт.

17

BN50145

WASHER

3/8 PLATED FLAT

4шт.

18

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

19

87342772

BOLT

3/8-16 X 1-3/4

2шт.

20

BN66111

STEERING COLUMN

TILT/TELE

1шт.

BN320401

LEVER

TILT STEERING

1шт.

Parts of Steering Column Tilt/tele, P/N BN66111

1шт.

BN98904

ELECTRICAL WIRE

WIRE horn

1шт.

Parts of Steering Column Tilt/tele, P/N BN66111

1шт.

21

BN66112

UNIVERSAL JOINT

STEERING COLUMN

1шт.

22

BN310333

CAP

STEERING WHEEL, BLK

1шт.

BN67057

STEERING WHEEL

3 Spoke, 16"

1шт.

Parts of Cap, Steering Wheel, Blk, P/N BN310333

1шт.

23

BN68814

CLAMP

Vinyl, 1/8" Dia.

1шт.

24

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

2шт.

25

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

2шт.

26

BN66265

SHIELD

16 GA Hrs, 6.75 x 13

1шт.

27

BN69875

SEAL

CLIP ON

1шт.

Выбрано товаров: 34
