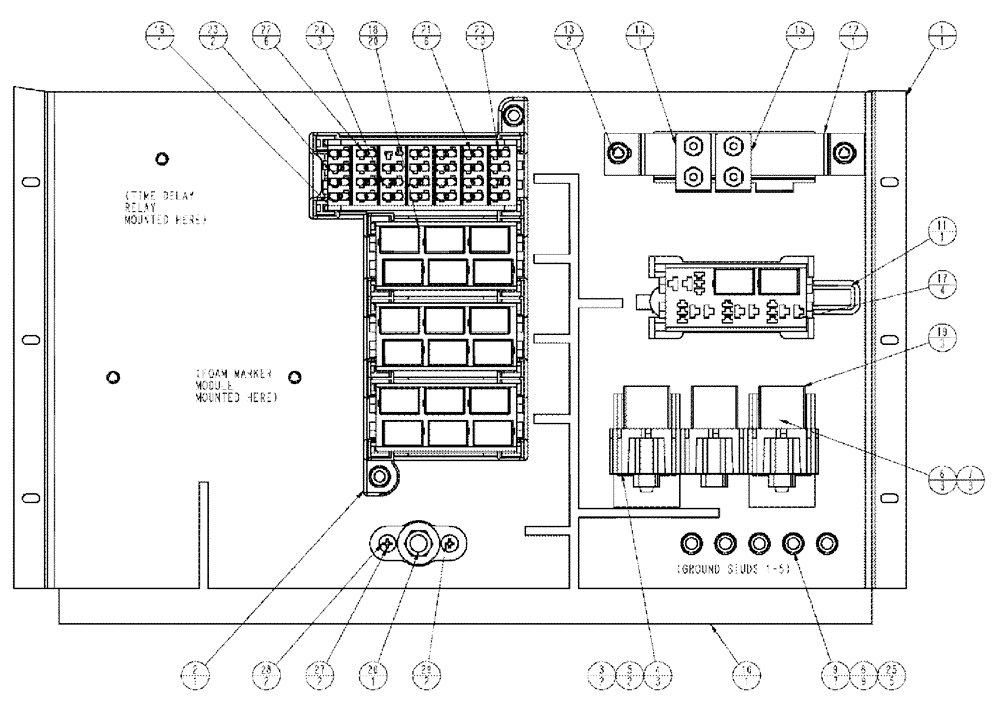

Запчасти Case IH 3210 (10-002) - MAIN ELECTRICAL CAB MODULE (06) - ELECTRICAL

1

87271600

MOUNT, FUSE/RELAY

1шт.

2

191135A1

BASE

Packard P/N 12110041

1шт.

3

367147A1

BRACKET

mounting (Dill #59205)

2шт.

4

367145A1

ELEC CONNECTOR,Female, 4 Pin

grey terminal (Dill #59184)

3шт.

5

367146A1

WEDGE

lock, red (Dill #59011)

2шт.

6

841-4512

SCREW,Hex Washer , M5 x 12mm, Cl 4.8

3шт.

7

825-5145

NUT,M5, Flg Ser

3шт.

8

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

9шт.

9

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

7шт.

10

87271597

WIRE HARNESS

MAIN CAB 781D

1шт.

11

87266527

BASE

rework, 16-way fuseblock

1шт.

12

BN300139

CIRCUIT BREAKER

3-CB Mount

1шт.

13

87030561

NUT,M6 x 1, Cl 8

2шт.

14

245761C1

CIRCUIT-BREAKER

1шт.

15

245765C1

CIRCUIT-BREAKER,30A

1шт.

16

144421A1

CONNECTING BLOCK

Module, Packard 28-Way Minifuse

1шт.

17

144417A1

CONNECTING BLOCK

Module, Packard 6-Way Micro Relay

4шт.

18

87414866

RELAY,12V, 20A

Bosch M30 332 201 107

20шт.

19

368459A1

RELAY,12V, 70A

70 amp power, Hella #66132

3шт.

20

121413A1

FUSE,15A, Mini, Blue

10шт.

21

121410A1

FUSE,5A, Mini, Tan

6шт.

22

121412A1

FUSE,10A, Mini, Red

6шт.

23

121411A1

FUSE,7.5A, Mini, Brown

2шт.

24

121415A1

FUSE,25A, Mini, Clear

3шт.

25

BN306354

COVER, PROTECTION 6.35 X 20MM

5шт.

26

20-1451T1

BLOCK

Junction

1шт.

27

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

28

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

29

87016571

NUT,M5, Cl 5

2шт.
