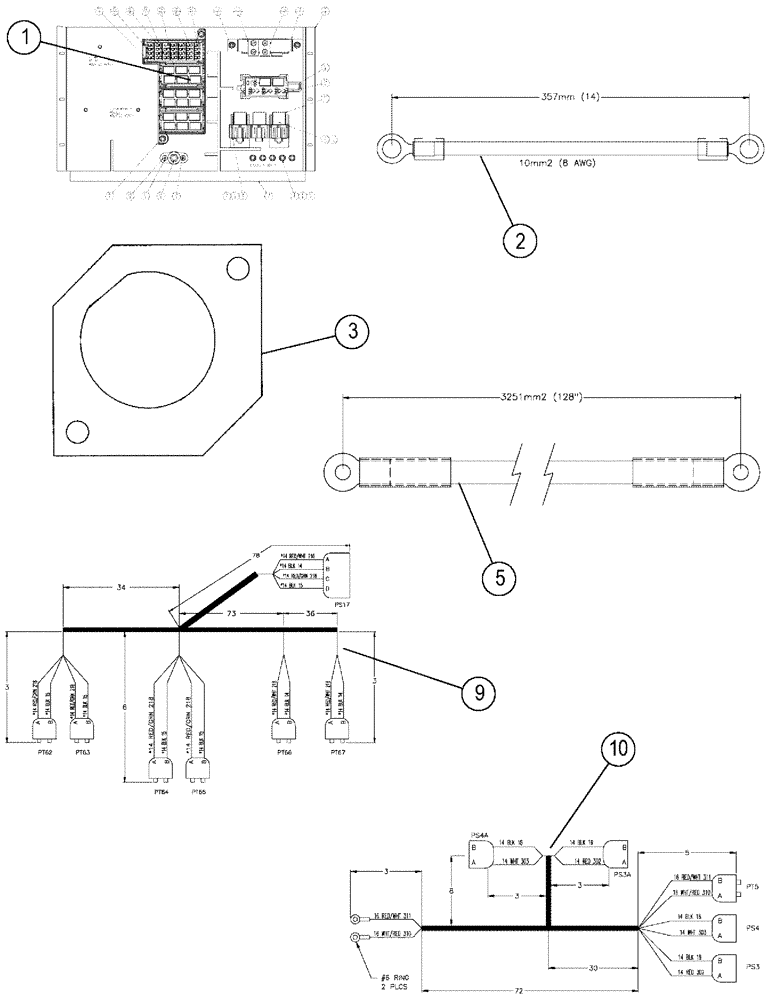

Запчасти Case IH 3210 (10-001) - CAB HARNESS PACKAGE (06) - ELECTRICAL

1

87271598

MODULE

Main Electrical Cab

1шт.

See Fig. 10-002

1шт.

86986073

HARNESS

Panel, Electric Assembly

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

2

BN307101

CABLE

8 GA. X 14" (CAB TO FRAME)

1шт.

3

BN309260

ADAPTER

assembly, plate

4шт.

BN306201

PLATE

22W ped to D Deutsch

1шт.

Parts of Assy, Plate Adaptor, P/N BN309260

1шт.

BN50052

LOCK NUT,1/4"-20, USR, SS

2шт.

Parts of Assy, Plate Adaptor, P/N BN309260

1шт.

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

Parts of Assy, Plate Adaptor, P/N BN309260

1шт.

4

BN311017

LOCK WASHER

1/4 EXT TOOTH

2шт.

5

BN320017

CABLE

Positive, C.B./Cab

1шт.

6

BN50054

NUT,1/4"-20, SS

1шт.

7

BN50138

WASHER,1/4", SS

2шт.

8

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

1шт.

9

BN68776

WIRE HARNESS

WORK LIGHTS

1шт.

10

BN68777

WIRE HARNESS

CAB, AUX SUPP

1шт.
