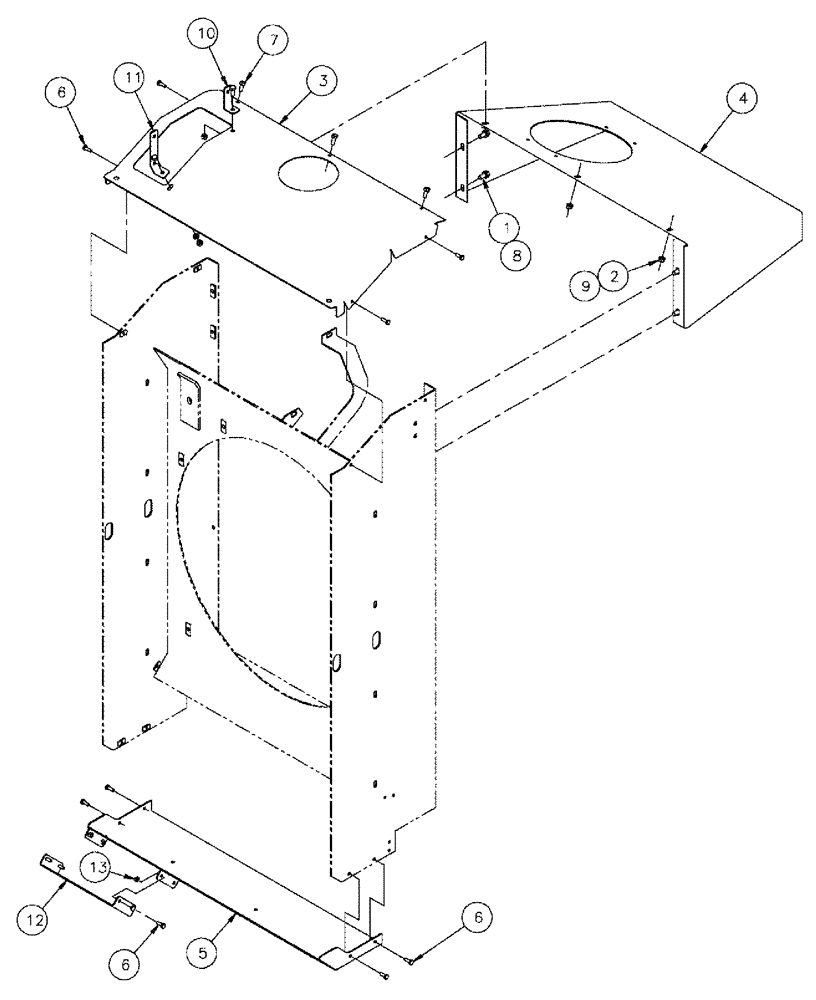

Запчасти Case IH 3210 (03-044) - RADIATOR COVERS GROUP (01) - ENGINE

1

BN300175

WASHER

3/8", G8

4шт.

2

86637953

WASHER,0.34" ID x 0.69" OD x 0.09" Thk

4шт.

3

87268342

COVER

Radiator, Top

1шт.

4

BN321954

HOOD

RAD/OIL TANK

1шт.

5

BN321956

COVER

BOTTOM, WLDMNT

1шт.

6

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

12шт.

7

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5шт.

8

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

9

280736

NUT,5/16"-18, GC

5шт.

10

BN322847

BRACKET, SUPPORTING

BOTTLE, UPPER

1шт.

11

BN322848

BRACKET

Bottle, Lower

1шт.

12

BN317237

BRACKET

HYD HOSES, MOUNT

1шт.

13

280129

NUT,1/4"-20

4шт.
