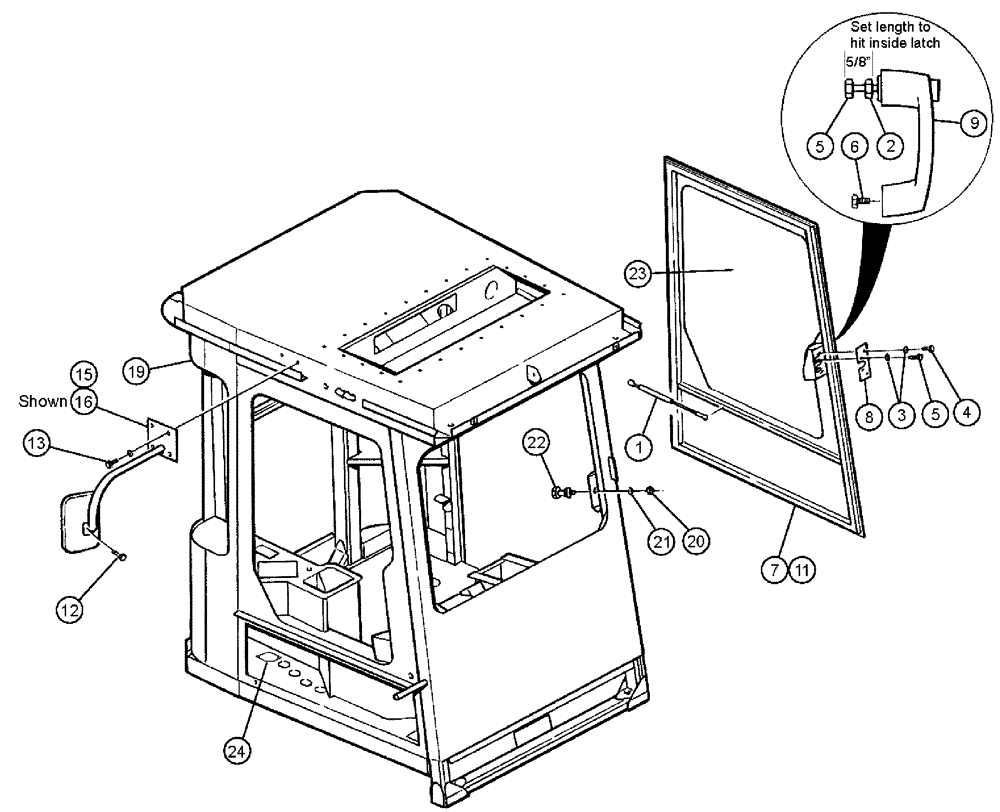

Запчасти Case IH 3210 (02-005) - DOOR, MIRRORS Cab Exterior

BN67932

DOOR ASSY.

ENTRY LH

1шт.

Includes Refs. 1 - 11

1шт.

1

BN29434

GAS STRUT

Cylinder Kit - Charged - Door (Complete)

1шт.

BN29400A

CYLINDER

Gas Charged

1шт.

Service Parts for Ref. 1

1шт.

BN29553A

BALL JOINT

Stud, 13 mm Dia 5/16"-18

2шт.

Service Parts for Ref. 1

1шт.

BN24120

CLIP, SPRING

Gas Cylinder

2шт.

Service Parts for Ref. 1

1шт.

2

280129

NUT,1/4"-20

1шт.

3

BN50138

WASHER,1/4", SS

4шт.

4

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

5

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

7

BN66026

DOOR

1шт.

8

BN66103

LATCH

door, two rotor

1шт.

BN67951

CAP

Vinyl, .060 x .437 x 1.5

1шт.

Associated Part of Latch (Door) Two Rotor (Inside), P/N BN66103

1шт.

9

BN66106

HANDLE

(DOOR) OUTSIDE

1шт.

BN303475

DOOR LOCK KEY

SET OF 2

1шт.

Associated Part of Handle (Door) Outside, P/N BN66106

1шт.

11

84146228

RUBBER SEAL,4877mm L

Door

1шт.

12

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

13

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

8шт.

185773A1

MIRROR

2шт.

1530998C2

SUPPORT

holder

2шт.

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

8шт.

15

BN314798

MOUNTING PARTS

MIRROR, LH

1шт.

16

BN314748

MOUNTING PARTS

MIRROR, RH

1шт.

Shown

1шт.

855-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 10.9

6шт.

Associated Part of Mirror Mnt Wldmnt, R.H. (SHOWN) P/N BN314748

1шт.

19

BN65970

CAB

1шт.

20

280980

NUT,7/16"-14, GC

1шт.

21

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

2шт.

22

BN66109

CATCH

STRIKER (DOOR)

1шт.

BN300873

BULB

Halogen, H3 12 volt

6шт.

Service Parts for Ref. 22

1шт.

24

BN69742

ELEC. TERMINAL PIN,Male

Bulkhead , .22 Pin Male

1шт.

BN69743

LOCK

BULKHEAD CONNECTOR

2шт.

Associated Part of Bulkhead Male Conn. 22 Pin, P/N BN69742

1шт.

BN16108

PLUG

Weatherpak Connector

22шт.

Associated Part of Bulkhead Male Conn. 22 Pin, P/N BN69742

1шт.

BN306057

CONTACT HOUSING

TERMINAL

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

BN50052

LOCK NUT,1/4"-20, USR, SS

2шт.

Associated Part of Bulkhead Male Conn. 22 Pin, P/N BN69742

1шт.

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

Associated Part of Bulkhead Male Conn. 22 Pin, P/N BN69742

1шт.
