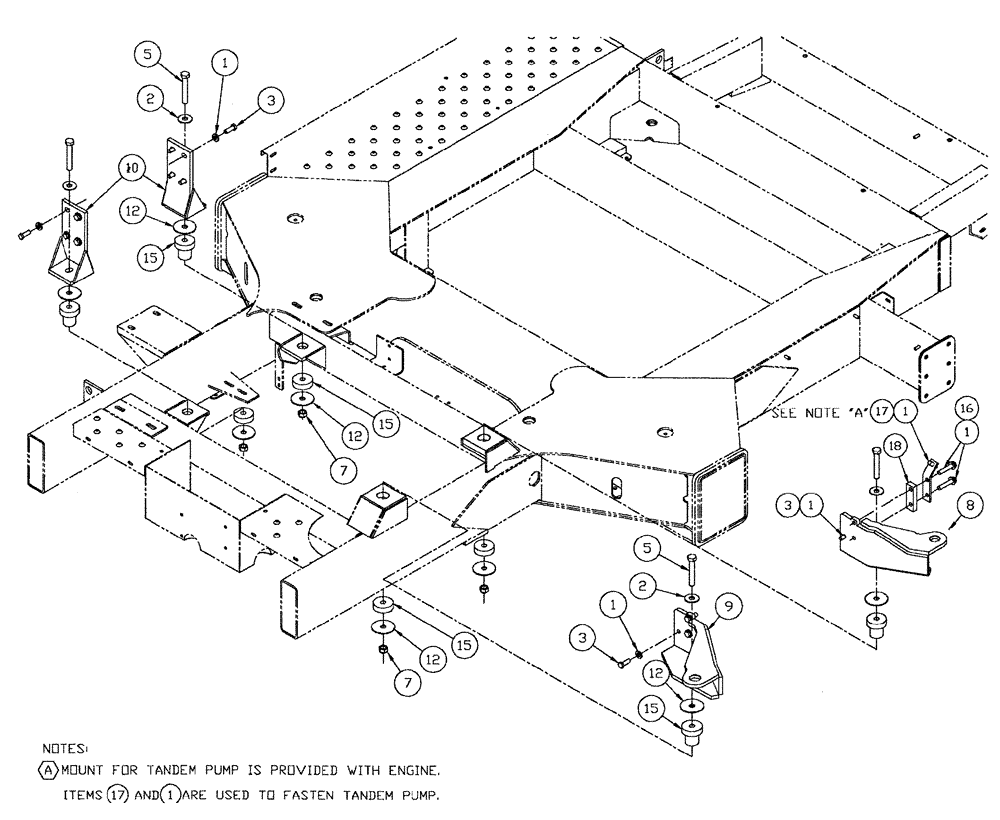

Запчасти Case IH 3210 (03-032) - ENGINE MOUNT GROUP (01) - ENGINE

1

BN300500

WASHER,M12, 10.9

15шт.

2

BN300501

WASHER

M16, FW, 10.9

4шт.

3

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

12шт.

5

321246

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

4шт.

7

832-46416

NUT,M16 x 2, Cl 8

4шт.

8

BN322021

BRACKET

ENGINE/RAD, LEFT

1шт.

9

BN322017

ENGINE MOUNT

Rad, RH

1шт.

10

BN318841

BRACKET

CDC ENGINE, REAR

2шт.

12

BN316871

WASHER

SNUBBER, TOP

8шт.

15

117846A1

INSULATOR BLOCK,16.69mm ID x 64.8mm OD x 84.6mm L

RUBBER BLOCK engine mount

4шт.

16

9706693

BOLT,M12 x 60mm, Cl 8.8

2шт.

17

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

18

BN318273

SPACER

BLOCK

1шт.
