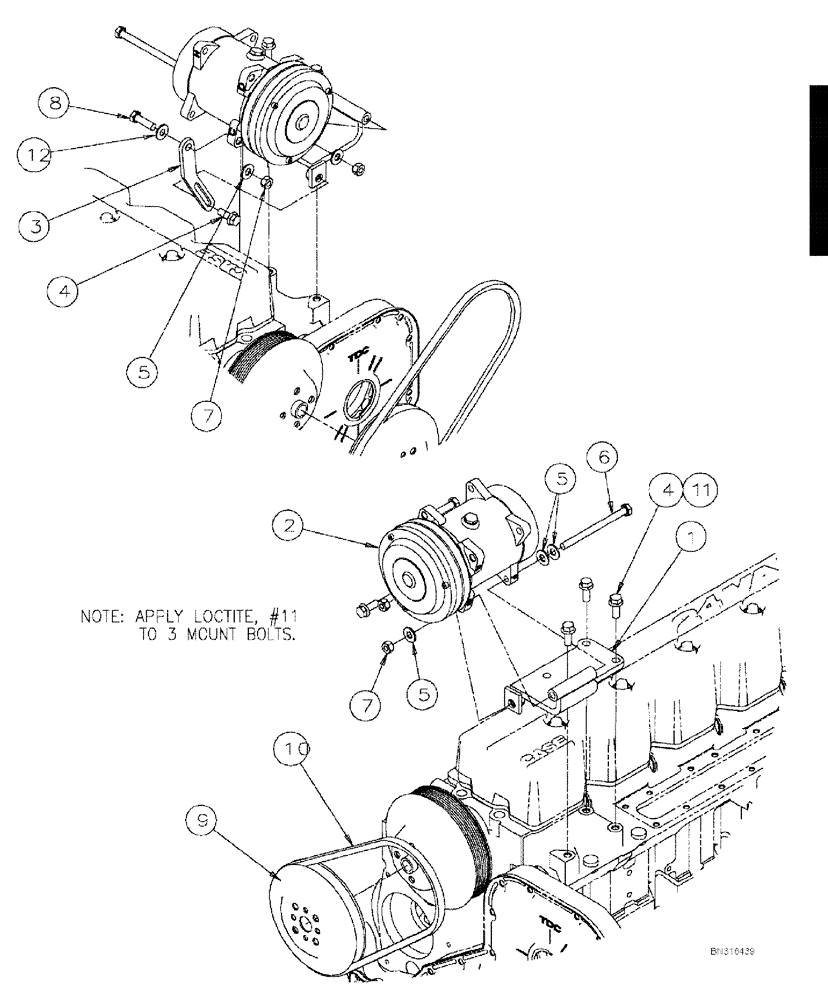

Запчасти Case IH 3210 (03-029) - A/C COMPRESSOR PACKAGE (01) - ENGINE

1

191951A1

SUPPORT

bracket, compressor

1шт.

2

1999755C3

COMPRESSOR

assembly, air conditioning, 12V double groove

1шт.

See Fig. 03-005

1шт.

2

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

2

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

2

86993462R

REMAN-COMPRESSOR

3210 (8/05-5/09); Reman For New P/N 1999755C3

1шт.

2

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

2

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

3

BN315445

BRACE

A/C COMPRESSOR BRACKET

1шт.

4

905-10025

BOLT,Hex Flg, M10 x 25mm

4шт.

5

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

6

86508575

BOLT,Hex, M10 x 130mm, Cl 8.8

1шт.

7

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

8

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

9

431716A1

PULLEY,147mm OD

A/C Drive

1шт.

10

90-7190T1

V-BELT,0.56" W x 40.25" L

1шт.

11

BN1243001

LOCTITE

243-31 Removable

1шт.

12

3120737R1

WASHER,10.8mm ID x 25mm OD x 5mm Thk

10.8 x 25 x 5 mm

1шт.
