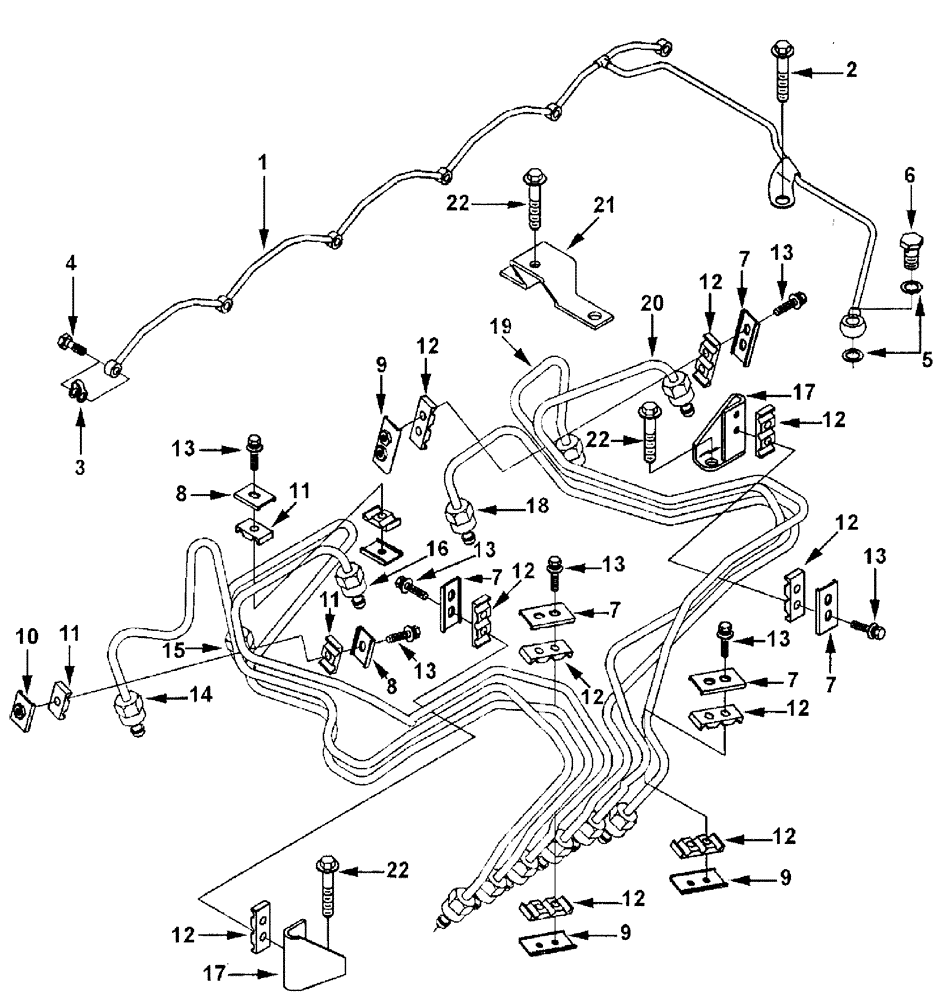

Запчасти Case IH 3210 (03-025) - FUEL PLUMBING (01) - ENGINE

1

J930847

MANIFOLD

FUEL

1шт.

2

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

3

J903380

SEAL

Banjo connector

6шт.

4

J905307

BANJO BOLT,M6 x 1 x 14.30mm

6шт.

5

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing

2шт.

6

J924726

BANJO BOLT

VALVE, CHECK M8 X 1.25 X 17.5

1шт.

7

J904519

SUPPORT

BRACE, TUBE

5шт.

8

CURJ904711

CLAMP

fuel tube

2шт.

9

J917716

BRACE

TUBE

3шт.

10

J917717

BRACE

TUBE

2шт.

11

J917746

CLAMP

ISOLATOR, VIBRATION

4шт.

12

J917747

CLAMP

ISOLATOR, VIBRATION

10шт.

13

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

12шт.

14

J930739

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 935 mm L

INJECTOR FUEL SUPPLY

1шт.

15

J930740

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 935 mm L

INJECTOR FUEL SUPPLY

1шт.

16

J930741

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 935 mm L

INJECTOR FUEL SUPPLY

1шт.

17

J933301

BRACE

TUBE

2шт.

18

J930742

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 935 mm L

INJECTOR FUEL SUPPLY

1шт.

19

J930743

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 935 mm L

INJECTOR FUEL SUPPLY

1шт.

20

J930744

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 935 mm L

INJECTOR FUEL SUPPLY

1шт.

21

J930751

BRACE

TUBE

1шт.

22

J930837

FLANGE BOLT,Hex, M8 x 1.25 x 50mm

HEX FLANGE HEAD CAP, M8 X 1.25 X 50

4шт.
