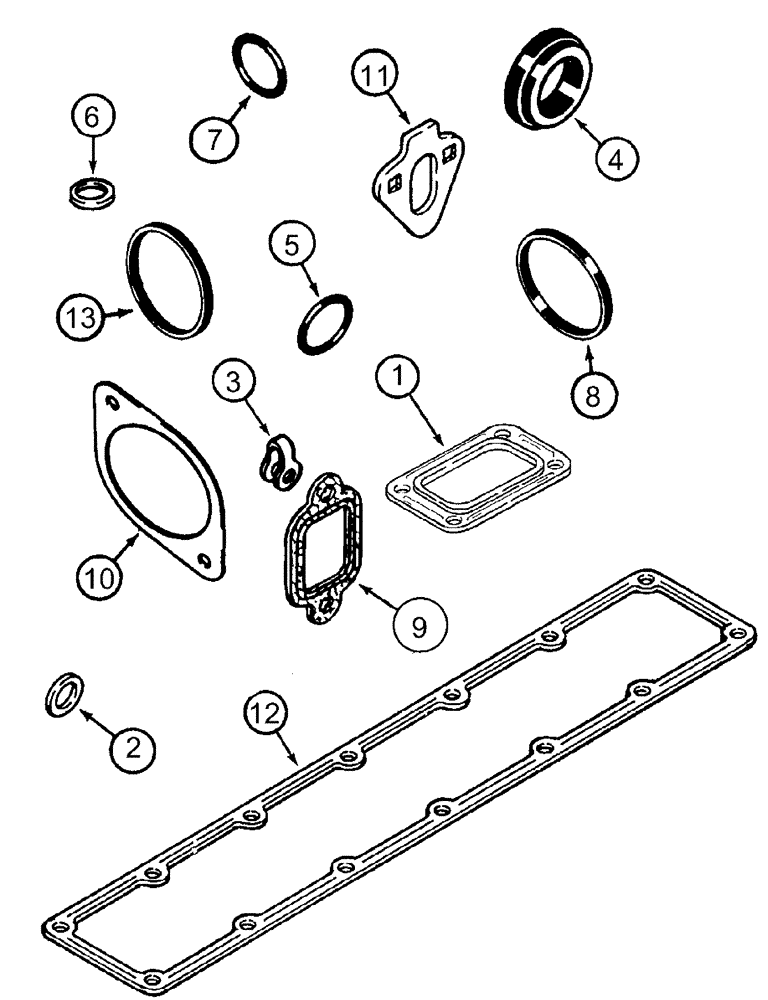

Запчасти Case IH 3210 (03-024) - BASIC ENGINE GASKET KITS (01) - ENGINE

1

J919369

GASKET,0.5mm Thk

TURBOCHARGER

1шт.

2

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

SEALING, 22 MM ID

1шт.

3

J903380

SEAL

Banjo connector

6шт.

4

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

RECTANGULAR RING

1шт.

5

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

RECTANGULAR RING

2шт.

6

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

RECTANGULAR

1шт.

7

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

injector body

6шт.

8

J923331

GASKET

THERMOSTAT HOUSING

2шт.

9

J927154

GASKET,0.38mm Thk

exhaust manifold

6шт.

10

J929751

GASKET

ACCESSORY DRIVE COVER

1шт.

11

J931059

GASKET

LIFT PUMP

2шт.

12

J938152

MANIFOLD GASKET

INT MANIFOLD COVER

1шт.

13

J935032

SEAL

RECTANGULAR

1шт.

86637735

SEAL,9.53mm ID x 13.97mm OD

3/8 Tube, Fl

2шт.

Not Shown

1шт.

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

Not Shown

1шт.

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

Not Shown

1шт.

J937706

GASKET,0.79mm Thk

OIL DRAIN

2шт.

Not Shown

1шт.

J906659

SEAL

INJ. TIP 1.5 MM

6шт.

Not Shown

1шт.

J910517

O-RING

1шт.

Not Shown

1шт.

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING REAR SEAL COVER

1шт.

Not Shown

1шт.

J918187

PACKING RING

WASHER, SEALING

2шт.

Not Shown

1шт.

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing

2шт.

Not Shown

1шт.

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER, SEALING M14

2шт.

Not Shown

1шт.

924605

D-SHAPED RING

1шт.

Not Shown

1шт.

J935171

SEALING WASHER

12 MM

4шт.

Not Shown

1шт.
