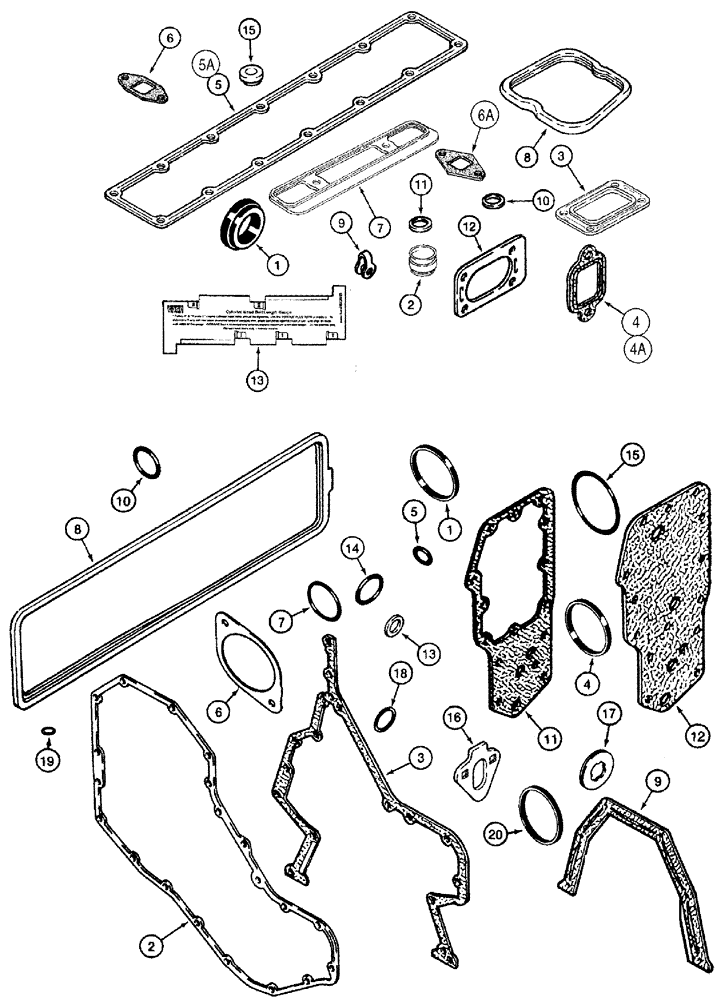

Запчасти Case IH 3210 (03-023) - GASKET KITS (01) - ENGINE

NSS

NOT SOLD SEPARAT

VALVE GRIND

1шт.

87434407

GASKET

Gasket, Valve Grind

1шт.

Consists of Refs. 1 - 15

1шт.

J923331

GASKET

HOUSING

1шт.

See Fig. 03-016 and 03-024

1шт.

2

J921640

SEAL

valve stem

12шт.

See Fig. 03-017

1шт.

3

J919369

GASKET,0.5mm Thk

MOUNTING

1шт.

See Fig. 03-009 and 03-024

1шт.

4

J905443

MANIFOLD GASKET

MANIFOLD, USED WITH A77871

6шт.

4a

J927154

GASKET,0.38mm Thk

exhaust manifold

6шт.

See Fig. 03-009 and 03-024, used with A77925

1шт.

5

J931347

GASKET

MOUNTING, USED WITH A77871

1шт.

5a

J938152

MANIFOLD GASKET

MOUNTING

1шт.

See Fig. 03-010, 03-008 and 03-024, used with A77925

1шт.

6

J931350

GASKET

MOUNTING, USED WITH A77871

1шт.

6a

J285747

GASKET

MOUNTING, USED WITH A77925

1шт.

7

J930426

GASKET

MOUNTING

1шт.

8

J930906

GASKET

6шт.

See Fig. 03-016

1шт.

9

J903380

SEAL

Banjo connector

6шт.

See Fig. 03-024 and 03-028

1шт.

10

J906659

SEAL

7 MM

6шт.

See Fig. 03-024 and 03-028

1шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

injector body

6шт.

See Fig. 03-024 and 03-028

1шт.

12

J914856

GASKET,1.02mm Thk

MOUNTING

1шт.

13

J823921

GAUGE

1шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

6шт.

See Fig. 03-016

1шт.

NSS

NOT SOLD SEPARAT

CYLINDER BLOCK

1шт.

A77964

SEAL PACKAGE

KIT Gasket, Cylinder Block

1шт.

Consists of Refs. 1 - 20

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

See Fig. 03-007 and 03-024

1шт.

2

J918673

GASKET,1.02mm Thk

1шт.

3

J931351

GASKET

HOUSING

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

See Fig. 03-007

1шт.

5

J913994

O-RING

1шт.

See Fig. 03-007

1шт.

6

J929751

GASKET

PLATE

1шт.

See Fig. 03-021 and 03-024

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

See Fig. 03-006

1шт.

8

J284623

GASKET

1шт.

See Fig. 03-019

1шт.

9

J938159

GASKET

MOUNTING

1шт.

See Fig. 03-020

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 MM ID

1шт.

See Fig. 03-019-02 and 03-024

1шт.

11

87549580

GASKET,1.02mm Thk

Oil Cooler Core, Cummins

1шт.

J942914

GASKET

OIL COOLER CORE

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

12

J929792

GASKET,1.2mm Thk

MOUNTING

1шт.

See Fig. 03-014

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

See Fig. 03-015 and 03-024

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 MM ID

1шт.

15

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

See Fig. 03-004 and 03-024

1шт.

16

J931059

GASKET

MOUNTING

1шт.

See Fig. 03-024

1шт.

17

J928759

SEALING WASHER

8шт.

See Fig. 03-019

1шт.

18

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

See Fig. 03-004

1шт.

19

J929457

O-RING

1шт.

See Fig. 03-014

1шт.

20

J935032

SEAL

1шт.

ns

A77996

GASKET KIT

Basic Engine, 6 Cylinder

1шт.

Not Shown

1шт.

See Fig. 03-024

1шт.
