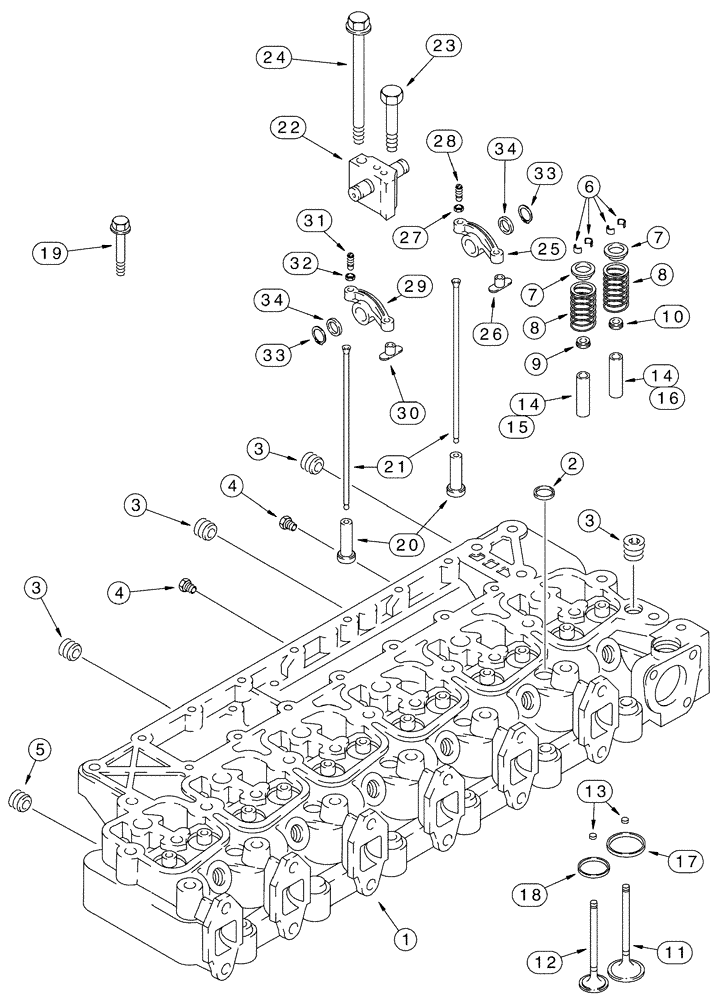

Запчасти Case IH 3210 (03-017) - VALVE MECHANISM (01) - ENGINE

JR938656

CYLINDER HEAD

ASSY, REMANUFACTURED, NORTH AMERICA ONLY

1шт.

JC938656

CYLINDER HEAD

RETURN NUMBER

1шт.

J938656

CYLINDER HEAD

ASSY, CONSISTS OF 1 - 12

1шт.

1

J934746

HEAD (CYLINDER)

ASSY, CONSISTS OF 2

1шт.

2

A77783

PLUG

Expansion, 21 mm od

5шт.

3

86625118

DRAIN PLUG,1/2" - 14 NPT

5шт.

4

J906619

PLUG,1/8" - 27

pipe, 1/8-27 hex socket

2шт.

5

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

6

CASJ900250

RETAINER

RETAINER

24шт.

7

J935038

RETAINER

12шт.

8

J926700

VALVE SPRING

12шт.

9

J921640

SEAL

valve stem

6шт.

10

J921640

SEAL

valve stem

6шт.

11

J920867

VALVE

INTAKE

6шт.

12

J920868

VALVE

EXHAUST

6шт.

13

J910412

WEAR PAD

INTAKE AND EXHAUST, SERVICE REPAIR ONLY

12шт.

14

J904408

GUIDE

14 MM OD, INTAKE, SERVICE REPAIR ONLY, REAM TO FIT

6шт.

15

J904409

GUIDE

14 MM OD, EXHAUST, SERVICE REPAIR ONLY, REAM TO FIT

6шт.

16

J906206

GUIDE

11 MM OD, INTAKE AND EXHAUST, SERVICE REPAIR ONLY, REAM TO FIT

12шт.

17

J906854

SEAT, VALVE

INTAKE, SERVICE REPAIR ONLY

6шт.

18

J904105

SEAT, VALVE

EXHAUST, SERVICE REPAIR ONLY

6шт.

19

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

70 mm

6шт.

19

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

120 mm

14шт.

20

J931623

TAPPET

12шт.

21

J284377

PUSH ROD

12шт.

22

J922488

SUPPORT

6шт.

23

J901221

BOLT

M8 X 75

6шт.

24

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

180 mm

6шт.

25

J910811

ROCKER

ARM ASSY, CONSISTS OF 26 - 28

6шт.

26

NSS

NOT SOLD SEPARAT

INSERT

1шт.

27

J934806

SCREW

1шт.

28

A77902

NUT

Special, 3/8"-24, Heavy, Type 8

1шт.

29

J910810

ROCKER

ARM ASSY, CONSISTS OF 30 - 32

6шт.

30

NSS

NOT SOLD SEPARAT

INSERT

1шт.

31

J934086

ADJUSTMENT SCREW,3/8" - 24 x 29.85mm

1шт.

32

A77902

NUT

Special, 3/8"-24, Heavy, Type 8

1шт.

33

J900242

SNAP RING

12шт.

34

J900245

WASHER

12шт.
