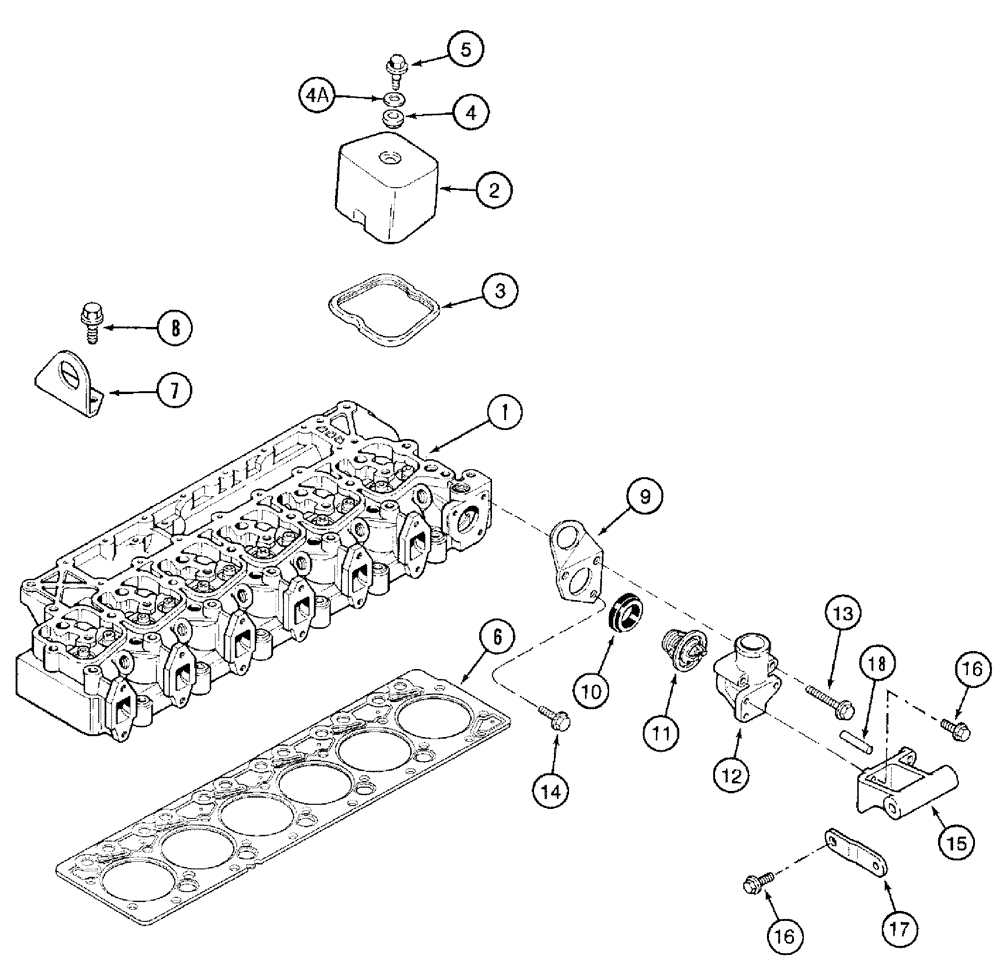

Запчасти Case IH 3210 (03-016) - CYLINDER HEAD & GASKET (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

HEAD

1шт.

See Fig. 03-017

1шт.

2

J928404

COVER

6шт.

3

J930906

GASKET

6шт.

4

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

6шт.

4a

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

6шт.

5

J907049

BOLT,Hex

FLANGE, M8 X 21

6шт.

6

J283335

GASKET,2.32mm Thk

CYL. HEAD

1шт.

6

J283337

GASKET,2.24mm Thk

CYL. HEAD, 0,25 MM

1шт.

6

J283339

GASKET

CYL. HEAD, 0,50 MM

1шт.

7

J908118

BRACKET

1шт.

8

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

2шт.

9

J903757

BRACKET

1шт.

Thermostat and housing

1шт.

A77736

THERMOSTAT

Kit, Coolant

1шт.

Thermostat and housing

1шт.

Consists of Refs. 10, 11

1шт.

10

J923331

GASKET

1шт.

Thermostat and housing

1шт.

11

NSS

NOT SOLD SEPARAT

ORDER A77736

1шт.

Thermostat and housing

1шт.

12

J285102

HOUSING

(THERMOSTAT)

1шт.

13

86624974

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

Thermostat and housing

1шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

Thermostat and housing

1шт.

15

J287096

SUPPORT

1шт.

Thermostat and housing

1шт.

16

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

Thermostat and housing

1шт.

17

J910924

PLATE

BRACE, M8 X 25

1шт.

Thermostat and housing

1шт.

18

838-5310

LOCK PIN,M3 x 10, Slotted

2шт.

Thermostat and housing

1шт.
