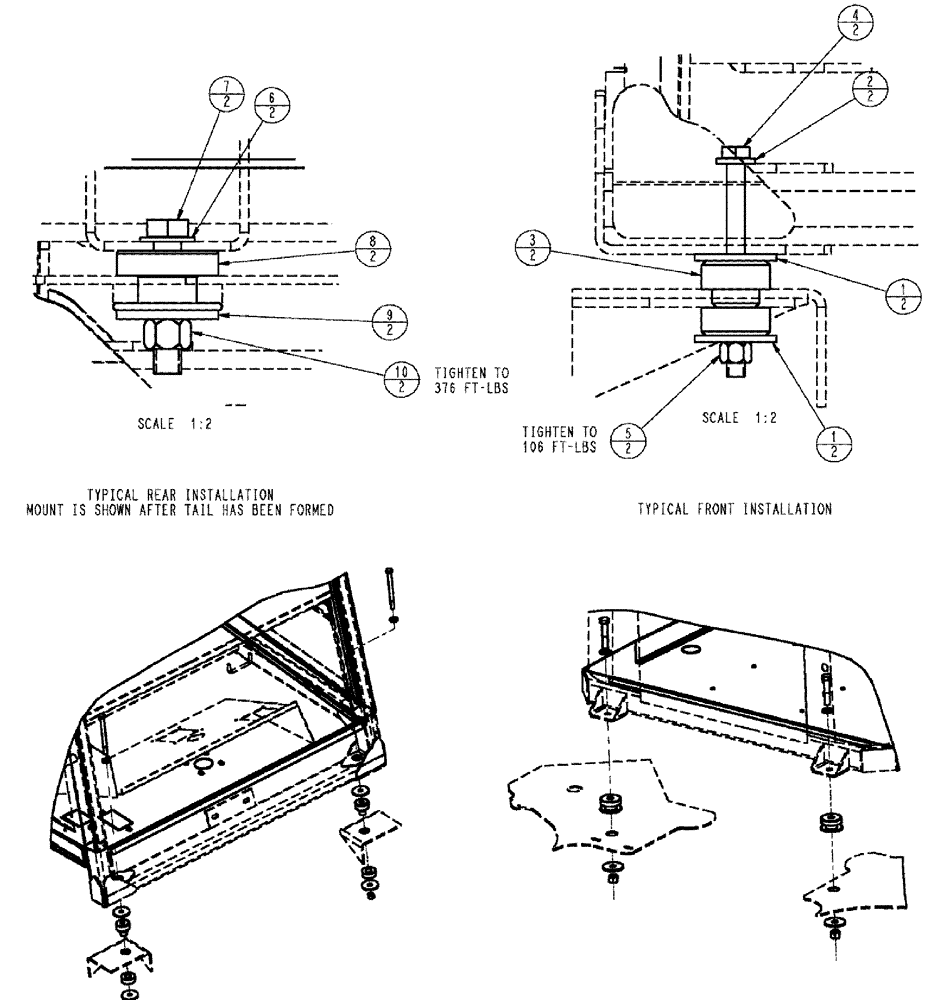

Запчасти Case IH 3210 (02-002) - CAB MOUNTING GROUP Cab Exterior

1

495-81239

WASHER,17/32" x 2 1/4" x .180"

4шт.

2

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

2шт.

3

H340562

MOUNTING PARTS

Front Cab Isolator

2шт.

4

426-896

BOLT,Hex, 1/2" - 13 x 6", Gr 8

2шт.

5

86992215

LOCK NUT,1/2"-13, GC

2шт.

6

87034831

WASHER,0.78" ID x 1.5" OD x 0.12" Thk

2шт.

7

426-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8

2шт.

8

BN319699

CUSHION

MOUNT, CENTER BONDED, Rear Cab Isolator

2шт.

9

BN323498

WASHER

CAB LIFT

2шт.

10

280375

NUT,3/4"-10, GC

2шт.
