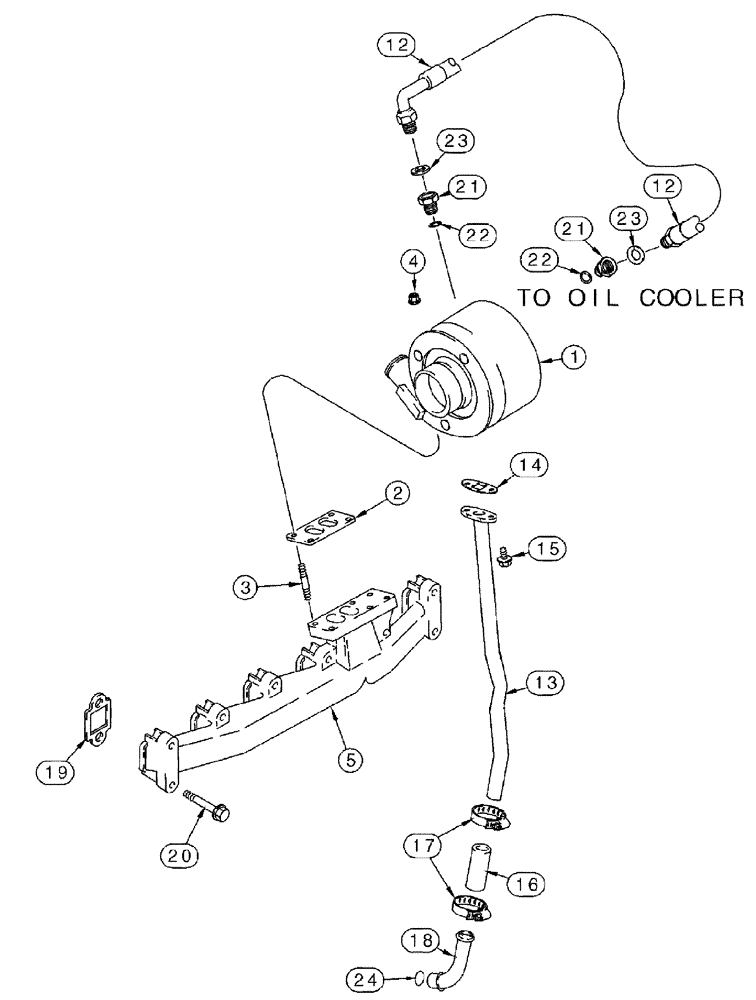

Запчасти Case IH 3210 (03-009) - TURBOCHARGER & CONNECTIONS (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

TURBOCHARGER, SEE FIG. 03-012

1шт.

2

J919369

GASKET,0.5mm Thk

MOUNTING

1шт.

3

J818823

STUD

4шт.

4

J818824

FLANGE NUT

FLANGE, M10

4шт.

5

J931747

MANIFOLD

1шт.

12

J918562

HOSE

538 MM (21-1/4 IN)

1шт.

13

J934093

TUBE

1шт.

14

J937706

GASKET,0.79mm Thk

MOUNTING

1шт.

15

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

16

J286499

HOSE

76 MM (3 IN)

1шт.

17

87016721

HOSE CLAMP,17.5mm - 31.7mm

2шт.

18

J931973

TUBE,0.875" OD

1шт.

19

J927154

GASKET,0.38mm Thk

exhaust manifold

6шт.

20

J901448

FLANGE BOLT,Hex, M10 x 65mm

12шт.

21

J919687

HYD CONNECTOR

INCLUDES 22

2шт.

22

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

23

86637735

SEAL,9.53mm ID x 13.97mm OD

3/8 Tube, Fl

2шт.

24

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.
