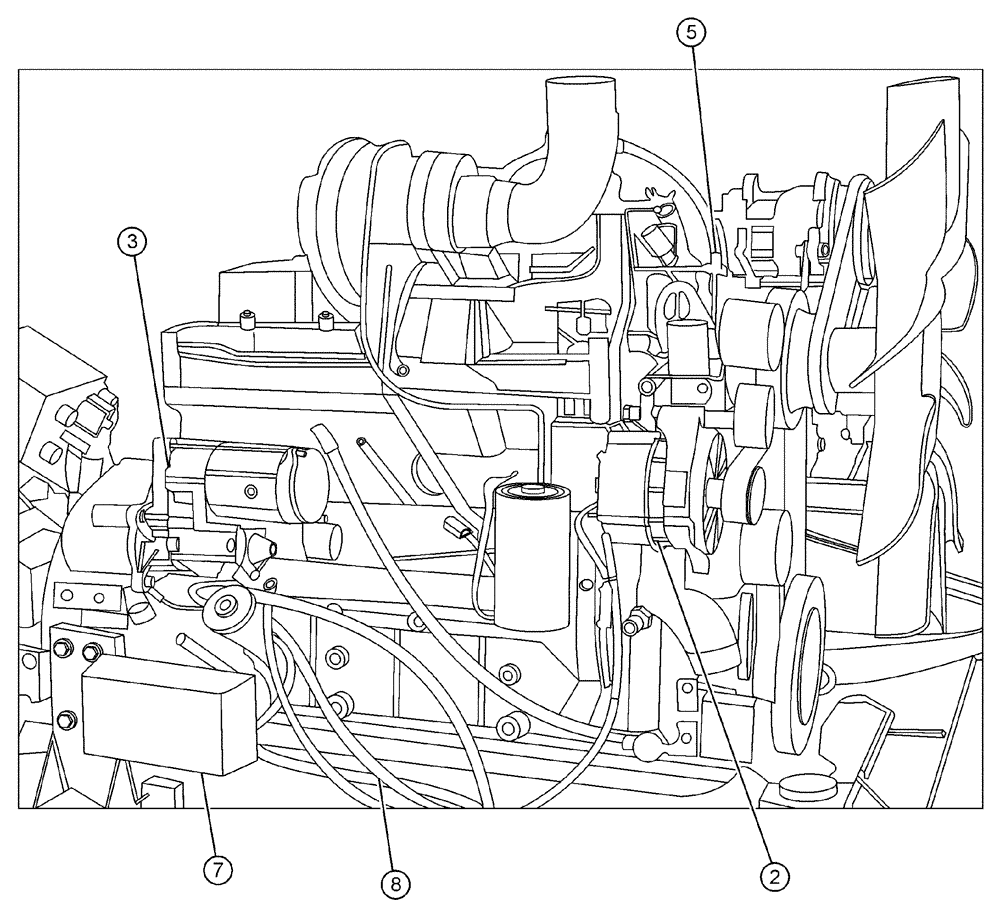

Запчасти Case IH 3210 (03-001[02]) - ENGINE GROUP (01) - ENGINE

1

BN310488

THROTTLE

CBL

1шт.

See Fig. 03-038

1шт.

BN319759

AIR CLEANER

1шт.

Not Shown

1шт.

See Fig. 03-031

1шт.

BN311139

FIP KIT

HYDSTAT MTG. GROUP

1шт.

Not Shown

1шт.

See Fig. 03-038

1шт.

NS

NOT SERVICED

Radiator Package

1шт.

Not Shown

1шт.

NS

NOT SERVICED

Shroud Mounting Group

1шт.

Parts of Assy Throttle Cbl, P/N BN310488

1шт.

See Fig. 03-041

1шт.

BN321981

MOUNTING GROUP

1шт.

Parts of Assy Throttle Cbl, P/N BN310488

1шт.

See Fig. 03-042

1шт.

BN322043

COMPONENTS GROUP

1шт.

Parts of Assy Throttle Cbl, P/N BN310488

1шт.

See Fig. 03-043

1шт.

BN321951

GROUP, RADIATOR

1шт.

Parts of Assy Throttle Cbl, P/N BN310488

1шт.

See Fig. 03-044

1шт.

BN322002

A\C MOUNT GROUP

1шт.

Parts of Assy Throttle Cbl, P/N BN310488

1шт.

See Fig. 03-045

1шт.

BN321945

GROUP, RADIATOR

1шт.

Parts of Assy Throttle Cbl, P/N BN310488

1шт.

See Fig. 03-046

1шт.

BN323031

GROUP REF ONLY

1шт.

Not Shown

1шт.

BN311178

ASSY

1шт.

Parts of Assy Throttle Cbl, P/N BN310488

1шт.

See Fig. 03-035

1шт.

BN321983

SHIELD, GRP

1шт.

Parts of Assy Throttle Cbl, P/N BN310488

1шт.

See Fig. 03-034

1шт.

BN314582

PACKING

ENGINE REF ONLY

1шт.

2

BN315577

PKG. ALTERNATOR

1шт.

See Fig. 03-030

1шт.

3

BN311554

ENGINE

STARTER MOTOR, w/hardware

1шт.

See Fig. 03-002

1шт.

4

BN311596

FLYWHL COUPLR W/HDWE

1шт.

See Fig. 03-003

1шт.

BN314934

ENGINE

CDC 5.9L-200HP ASY

1шт.

Parts of Flywheel Coupler W/Hardware, P/N BN311596

1шт.

362559A2

ENGINE ASSEMBLY

ENGINE ASSY CDC (6TA-590) 200 Hp

1шт.

Parts of Flywheel Coupler W/Hardware, P/N BN311596

1шт.

BN314986

TEMPERATURE SENDER

SERVICE ITEMS

1шт.

Parts of Flywheel Coupler W/Hardware, P/N BN311596

1шт.

5

326347A1

TEMPERATURE SENDER

temperature 1/2-14 NPTF

1шт.

6

BN319998

SENDER UNIT

oil pressure

1шт.

BN310705

AIR CONDITIONER

A/C GROUP

1шт.

Not Shown

1шт.

See Fig. 02-006-01, 02, 03

1шт.

BN314933

HARNESS

ENGINE ELEC. GROUP

1шт.

BN311569

PKG. BATTERY ASSY SEE FIG.03-037

1шт.

Parts of Sender Assy Oil Press, P/N BN319998

1шт.

7

BN310903

MOUNTING PLATE

SOL. MNT. W/SHIELD SEE FIG.03-036

1шт.

8

BN322891

WIRE HARNESS

CDC 200 ENGINE

1шт.

BN314936

HOSE, BULK

HOSE, METERS FUEL DELIVERY SYSTEM SEE FIG.03-026 (NOT SHOWN)

1шт.

BN313523

SLEEVE

hose, nylon, 6"

1шт.

BN320236

PKG. HDWE, FUEL FILTER MTG SEE FIG.03-040

1шт.

9

BN318839

FUEL HOSE,9.53 mm ID x 3937.00 mm, SAE 30R6, SAE 30R7

fuel 3/8" x 155"

2шт.

BN75906

CLAMP

3/8 TO 1/2 ADJ HOSE S

1шт.

BN76094

HOSE CLAMP

SS #M4

3шт.

J935740

BANJO BOLT

CONNECTOR.

1шт.

BN322013

ENGINE MOUNTS GROUP, SEE FIG 03-032

1шт.
