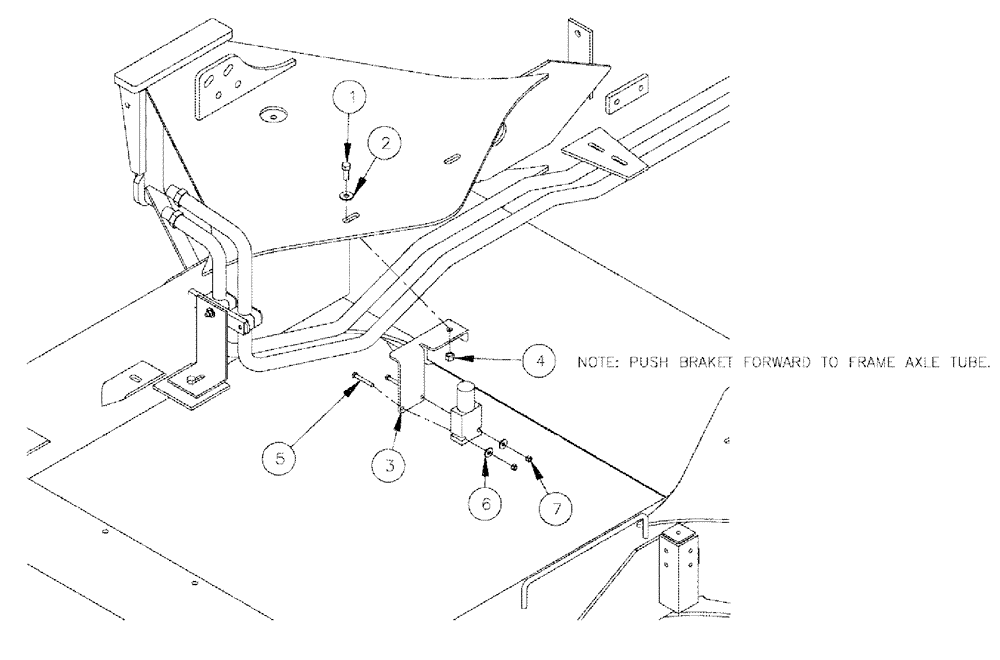

Запчасти Case IH 3210 (04-023) - BRAKE VALVE MOUNT GROUP Suspension & Frame

1

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

2

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

3

86986454

BRACKET, SUPPORTING

Mount, Brake Valve

1шт.

4

88902

NUT,3/8"-16

1шт.

5

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

6

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

7

280129

NUT,1/4"-20

2шт.
