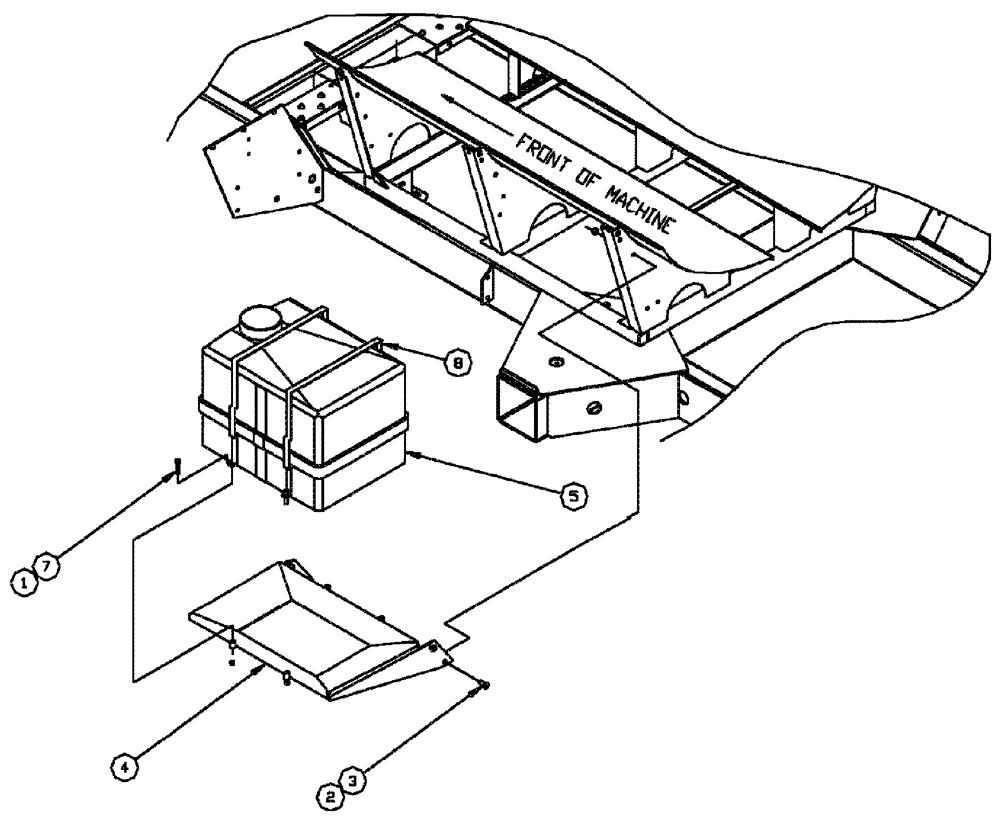

Запчасти Case IH 3185 (09-003) - FOAM TANK ASSEMBLY, ELLIPTICAL Liquid Plumbing

1

88902

NUT,3/8"-16

4шт.

2

86992215

LOCK NUT,1/2"-13, GC

4шт.

3

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

4

BN24301

SUPPORT

35 Gallon Tank 771

1шт.

5

BN318815

TANK

assembly, 35 gallon, vented

1шт.

6

BN319053

SIGHT GAGE PKG, RINS (NOT SHOWN)

1шт.

See 09-030 For Service

1шт.

7

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

4шт.

8

BN63984

STRAP

14 GA Hrs 1 x 49.5

2шт.
