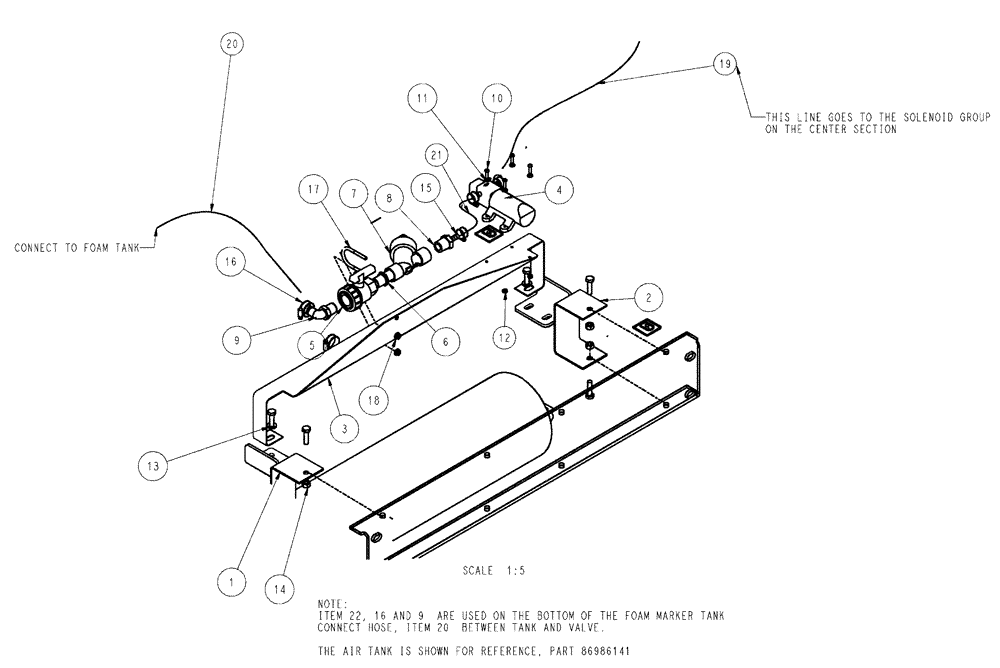

Запчасти Case IH 3185 (09-002) - FOAM PUMP AND FITTINGS Liquid Plumbing

1

87267663

MOUNTING PLATE

Tank, LH

1шт.

2

87267666

MOUNTING PLATE

Tank, RH

1шт.

3

87268312

BRACKET, SUPPORTING

1шт.

4

87727677

PUMP,12V

Diaphragm, 1 GPM, 12V, Foam Transfer

1шт.

5

BN324588

VALVE

Ball 3/4" SU Poly

1шт.

6

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

7

BN324892

FILTER STRAINER,3/4" x 3/4" Y Strainer

3/4" "Y" 40 Mesh

1шт.

8

343436A1

PIPE FITTING,3/4" Male Thread x 3/8" Hose Barb

3/4" MPT X 3/8" Hose Barb, Poly

1шт.

9

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

2шт.

10

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

4шт.

11

BN310265

WASHER

10, Stainless Steel

4шт.

12

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

13

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

14

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

15

BN324022

HOSE CLAMP

3шт.

16

BN310466

FIP KIT

2шт.

17

BN68011

U-BOLT

BOLT "U" 1/4-20 SS, 1" pipe

1шт.

18

BN50052

LOCK NUT,1/4"-20, USR, SS

2шт.

19

BN75913

TUBE

Bulk, 3/8" ID

1шт.

20

BN52310

TUBE,0.75" ID

Wall Vinyl

1шт.

Cut 192" from bulk roll

1шт.

21

87266748

HOSE

3/8" x 10.5" Clear

1шт.

22

BN73716

BUSHING,1-1/2" Male NPT x 3/4" Female NPT, Poly

1.5 x .75 Reducer Poly

1шт.
