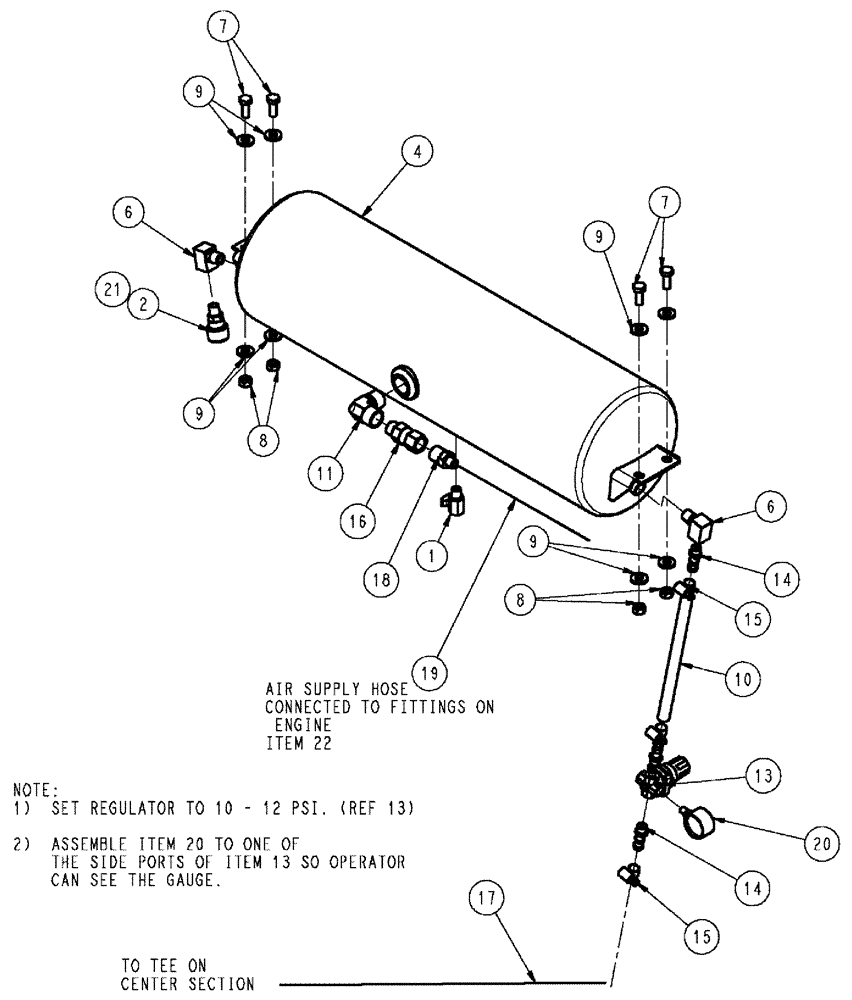

Запчасти Case IH 3185 (09-001) - FOAMER AIR TANK GROUP Liquid Plumbing

1

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Valve, 1/4" Weatherhead

1шт.

2

BN2393326

COUPLING

B32

1шт.

4

BN316553

AIR TANK

8" DIA. X 32"

1шт.

6

87032210

ELBOW

90º Street, 3/8M X 1/4F, BRS

2шт.

7

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

8шт.

8

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

9

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

8шт.

10

BN317965

HOSE,12.70 mm ID x 203.00 mm

Drain, Oil

1шт.

11

BN319011

FITTING

FTG NPT -12M-8F 90 DEG

1шт.

13

87388151

REGULATOR

Air Pressure

1шт.

14

BN324008

FITTING

1/4" NPT x 1/2" Hose Barb, Poly

3шт.

15

9706921

HOSE CLAMP,12.7mm - 35mm

3шт.

16

BN2295247

CHECK VALVE

Air #5003980

1шт.

17

BN324519

HOSE,0.50" ID x 68.00"

EPDM

1шт.

18

BN2293122

FITTING

0103-8-6

1шт.

19

86986142

SLEEVE

Hose, 6 x 211"

1шт.

20

86986803

GAUGE

0-30 PSI, 1/8" NPT

1шт.

21

87267960

COVER

dust, air chuck

1шт.

22

NS

NOT SERVICED

ENG. GRP, TURBO AIR (FOAMR)

1шт.

BN2290273

BUSHING

0102-8-6

1шт.

Parts of Engine Group, Turbo Air (Foamer, P/N 343086A1)

1шт.

NS

NOT SERVICED

ADAPTOR, 90-3/8NPT-9/16JIC

1шт.

Parts of Engine Group, Turbo Air (Foamer, P/N 343086A1)

1шт.
