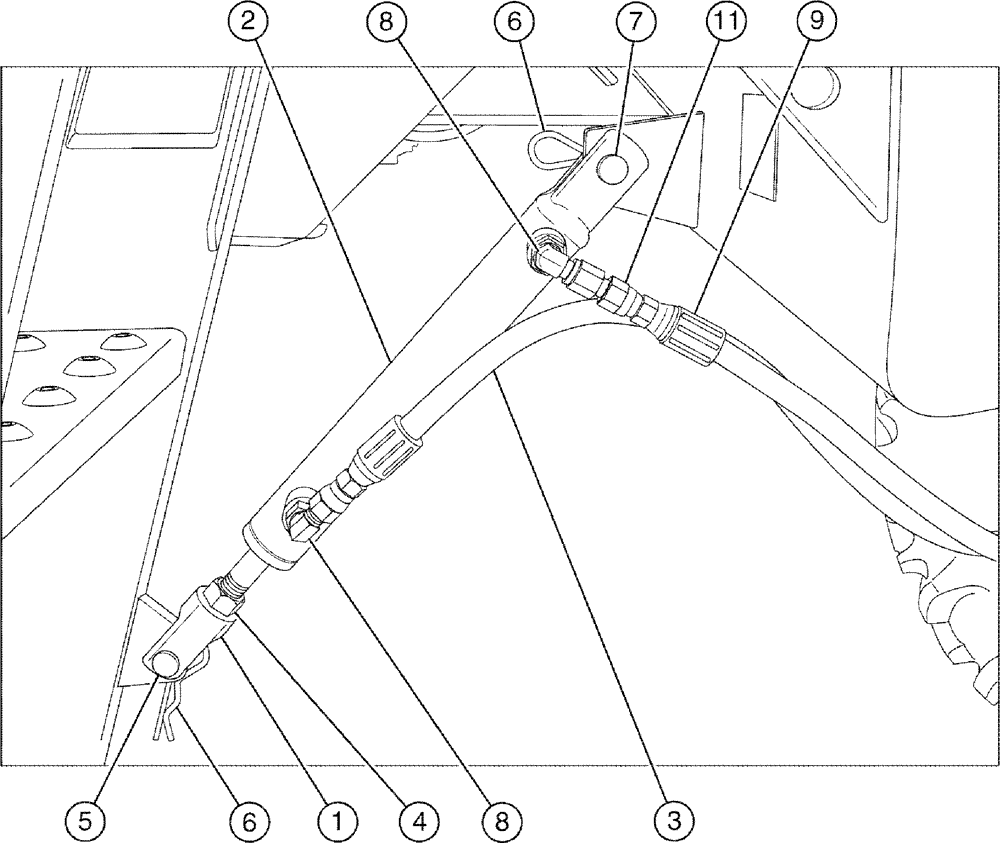

Запчасти Case IH 3185 (06-032) - LADDER, HYDRAULIC FRONT, "BEFORE SERIAL # 7096" Hydraulic Plumbing

1

BN21982

CLEVIS,1/2" - 20

1" Diameter CRS x 1.87

1шт.

2

87266443

HYDRAULIC CYLINDER,12.7mm Rod, 152.4mm Stroke

1 x 6 x 0.5, Complete

1шт.

3

BN316465

HOSE ASSY.

4 X 148"

1шт.

4

BN50075

NUT

1/2-20 HEX SS

1шт.

5

86624079

HEADED PIN,3/8" x 1 1/4", G2

1шт.

6

BN71006

COTTER PIN

1/8", #11

2шт.

7

439-1824

HEADED PIN,1/2" x 1 1/2", G2

1шт.

8

BN51591

ELBOW

90° - O-Ring 37 FL 7/16

2шт.

9

BN316464

HOSE ASSY.

4 X 97"

1шт.

11

BN319640

RESTRICTOR VALVE

ORIFICE-4JIC (.042)

1шт.
