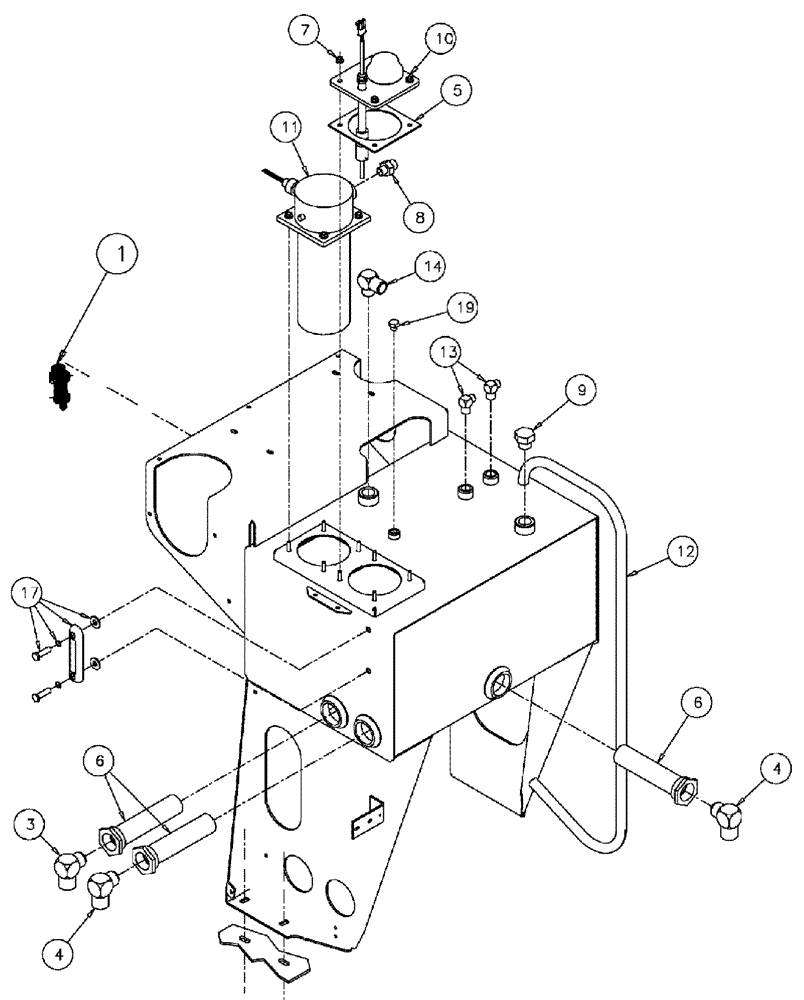

Запчасти Case IH 3185 (06-025) - OIL TANK GROUP, "BEFORE SERIAL # 20056" Hydraulic Plumbing

1

87105048

DRAINCOCK/TAP SUPPLY

Valve, Hydraulic

1шт.

3

BN52037

ADAPTER

90º OR 37 FL20-24

1шт.

4

BN52337

FITTING

20MJ-20MB X 90

2шт.

5

BN302982

GASKET,3.17mm Thk

COVER PLATE

1шт.

6

BN303528

STRAINER ASSY.

32MBx-20FB,100

3шт.

7

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

8шт.

8

BN53927

ADAPTER

90º 16 O-Ring-12 JIC

1шт.

9

BN60479

PLUG

1 5/16-12 O-RING-HEX

1шт.

10

BN322802

SWITCH

Level Temp Grp

1шт.

11

87270935

FILTER

Intank, SAE 24, 6ABS, Start Serial: 7053

1шт.

11a

BN306030

FILTER

TANK, SAE 24, 6ABS

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

11b

BN306031

ELEMENT

Filter, 6ABS

1шт.

12

87270551

TANK

Oil

1шт.

13

BN445001

FITTING

12MJ-12MB X 90

2шт.

14

BN51621

FITTING

16MJ-16MB X 90

1шт.

17

BN322594

GAUGE

sight with temperature

1шт.

19

BN446048

PLUG

ORING, -6, 9/16-18

1шт.

19a

87266217

DECAL

Oil Drain

1шт.

Not Shown

1шт.
