(06-024) - OIL TANK GROUP, "SERIAL # 20056 AND LATER"

Запчасти Case IH 3185 (06-024) - OIL TANK GROUP, "SERIAL # 20056 AND LATER" Hydraulic Plumbing

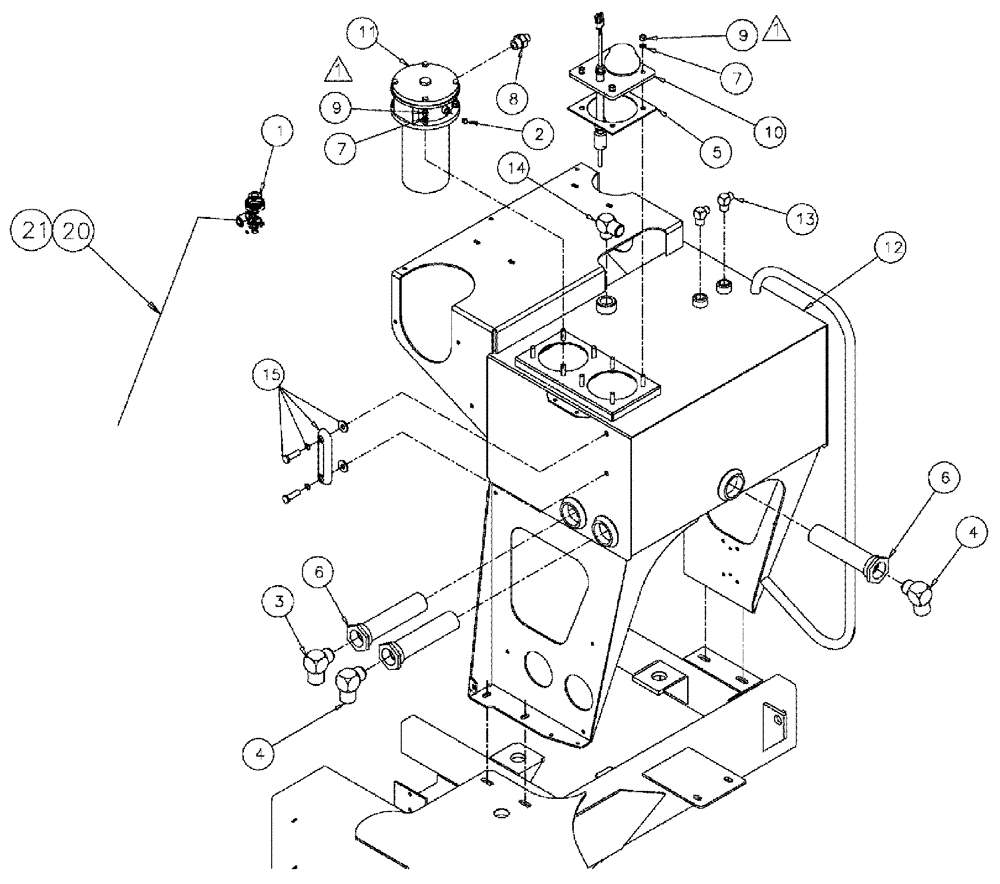

Схема запчастей Case IH 3185 - (06-024) - OIL TANK GROUP, "SERIAL # 20056 AND LATER" Hydraulic Plumbing
3
15
10
11
21
7
6
2
9
5
9
8
13
4
7
14
12
6
20
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87105048

DRAINCOCK/TAP SUPPLY

Valve, Hydraulic

1шт.

2

BN53991

PLUG

O-RING 7/16-20

1шт.

2a

87267808

PRESSURE SWITCH

25 psi N/C

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

3

BN52037

ADAPTER

90º OR 37 FL20-24

1шт.

4

BN52337

FITTING

20MJ-20MB X 90

2шт.

5

87272095

GASKET,3.17mm Thk

COVER PLATE

1шт.

6

BN303528

STRAINER ASSY.

32MBx-20FB, 100

3шт.

7

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

8шт.

8

BN55352

ADAPTER

ORXJIC 20-16

1шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

10

87633839

SENSOR

Level Temp Switch Group

1шт.

See Fig. 06-028

1шт.

11

87267807

HYDRAULIC OIL FILTER

Oil In-Tank SPX

1шт.

See Fig. 06-023

1шт.

11a

87272033

ELEMENT

1шт.

12

87272047

TANK

oil

1шт.

13

BN445001

FITTING

12MJ-12MB X 90

2шт.

14

BN51621

FITTING

16MJ-16MB X 90

1шт.

15

BN322594

GAUGE

sight with temperature

1шт.

20

129096A1

HOSE

Reservoir Drain

1шт.

21

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.
