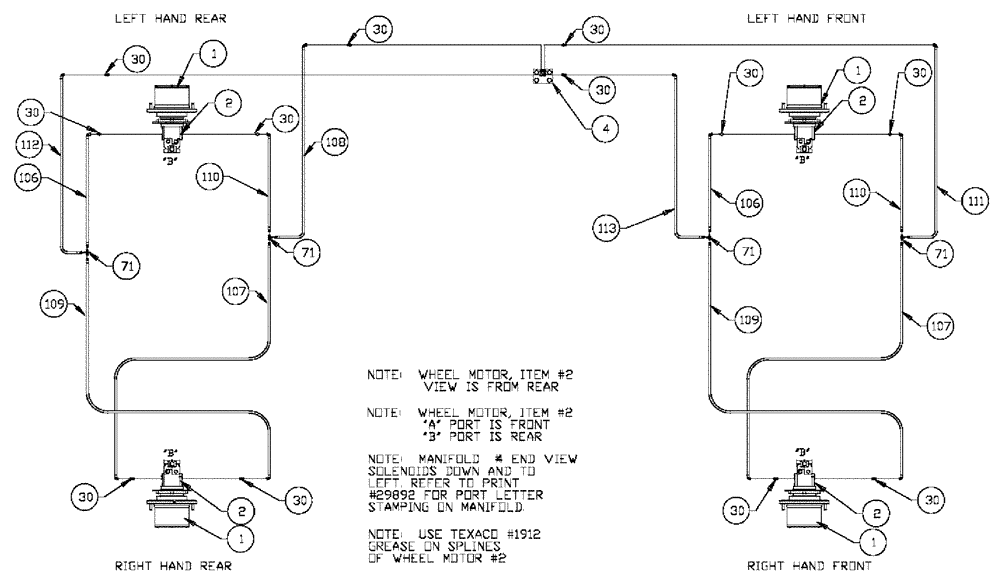

Запчасти Case IH 3185 (06-008) - WHEEL MOTORS (POWER SHIFT) Hydraulic Plumbing

1

87270303

HUB

POWER WHEEL

1шт.

See Fig. 05-001

1шт.

1a

NSS

NOT SOLD SEPARAT

CAP - HUB COVER

4шт.

See Fig. 06-001

1шт.

2

BN25866

MOTOR,GEAR, 24.6 CC

wheel

4шт.

See Fig. 06-027

1шт.

BN25866R

REMAN-HYD MOTOR

3185,

4шт.

BN25866C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4

BN69418

BLOCK

MANIFOLD

1шт.

See Fig. 06-021

1шт.

30

BN51589

FITTING

9/16-18 O-RING X 7/16-20 JIC

12шт.

30a

BN98019

O-RING

#6

12шт.

71

BN21422

TEE

7/16-20 JIC

4шт.

106

BN54232

HOSE

1/4" x 119", 100R1

2шт.

107

BN55114

HOSE

1/4" x 150", 100R1

2шт.

108

BN54149

HOSE,0.25" ID x 132.00", SAE 100R1

1шт.

109

BN55113

HOSE

1/4" x 144", 100R1

2шт.

110

BN54150

HOSE,0.25" ID x 110.00", SAE 100R1

2шт.

111

BN54152

HOSE,0.25" ID x 42.00", SAE 100R1

1шт.

112

BN54211

HOSE

1/4" x 132", long 90° elbow

1шт.

113

BN54212

HOSE

1 /4" x 42", long 90° elbow

1шт.
