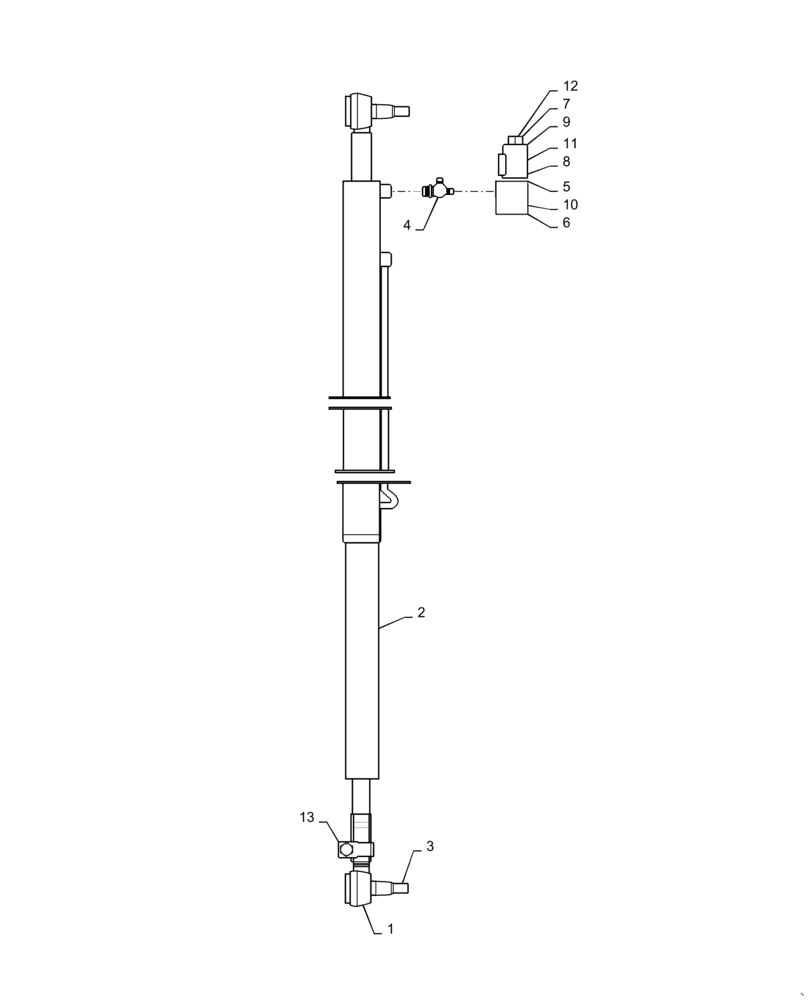

Запчасти Case IH 3185 (06-006) - CYLINDER, TIE ROD ASSEMBLY RH Hydraulic Plumbing

1

359775A1

END ASSY.

Tie Rod, RH 1"-16 Thread

2шт.

2

87270931

CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

Hydraulic, 2.00 x 16 x 1.25

1шт.

See Fig. 07-012

1шт.

3

BN50604

COTTER PIN

1/8 X 1 &1/2

2шт.

4

BN21866

TEE,9/16"-18 O-Ring x 7/16:-20, 37 Degree

2шт.

87271042

FITTING

4MB-4FJX, Not Shown

2шт.

87271142

FITTING

6MB - 4FJX, Not Shown

2шт.

5

87271999

HYDRAULIC VALVE

2/2 WAY RESTRICTED, Start Serial: 20004

2шт.

6

87271151

VALVE BODY

1шт.

Service Parts for P/N 87271999

1шт.

7

BN306167

CARTRIDGE

12V 2 WAY

1шт.

Service Parts for P/N 87271999

1шт.

8

87267925

COIL,12V

12V DC

1шт.

Service Parts for P/N 87271999

1шт.

9

87271037

SOLENOID VALVE

2 Port, Serial Range: -20004

2шт.

10

87271151

VALVE BODY

1шт.

Service Parts for P/N 87271037

1шт.

11

BN301705

COIL

12VDC, shift w/ female Packard connector

1шт.

Service Parts for P/N 87271037

1шт.

12

BN306167

CARTRIDGE

12V 2 WAY

1шт.

Service Parts for P/N 87271037

1шт.

13

BN04851

CLAMP

Tie Rod End, With Bolt

2шт.
