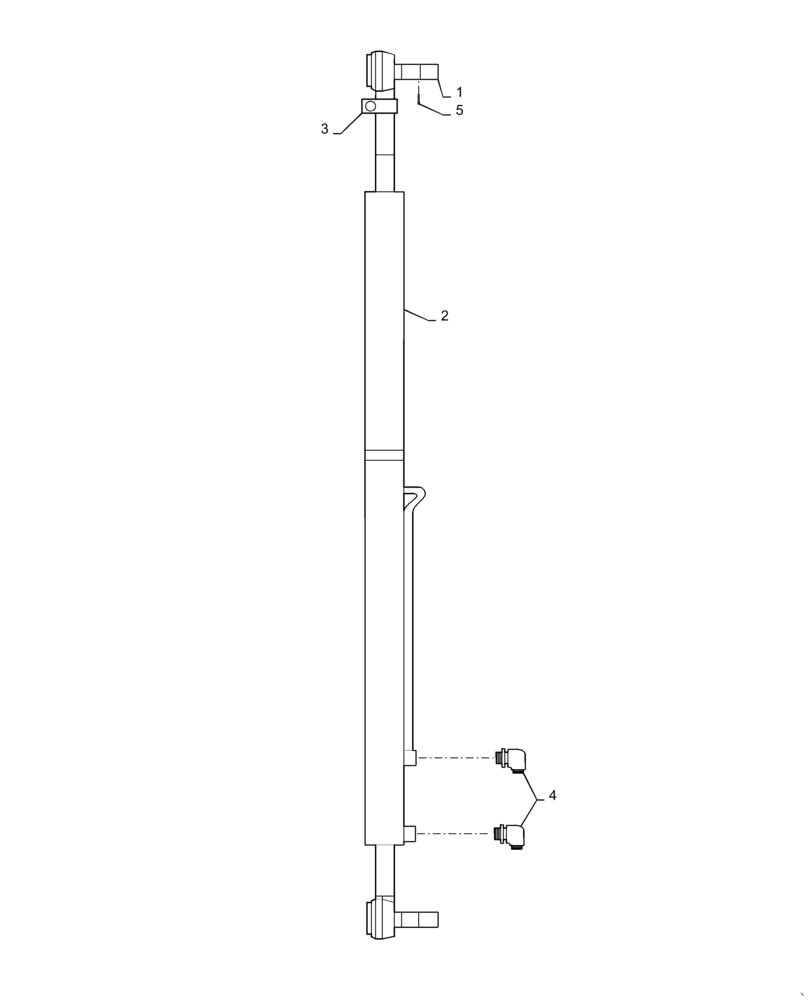

Запчасти Case IH 3185 (06-005) - CYLINDER, TIE ROD ASSEMBLY LH Hydraulic Plumbing

1

359775A1

END ASSY.

Tie Rod, RH 1"-16 Thread

2шт.

2

87270931

CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

Hydraulic, 2.00 x 16 x 1.25

1шт.

See Fig. 07-012

1шт.

3

BN04851

CLAMP

Tie Rod End, With Bolt

2шт.

4

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

2шт.

5

BN50604

COTTER PIN

1/8 X 1 & 1/2

2шт.
