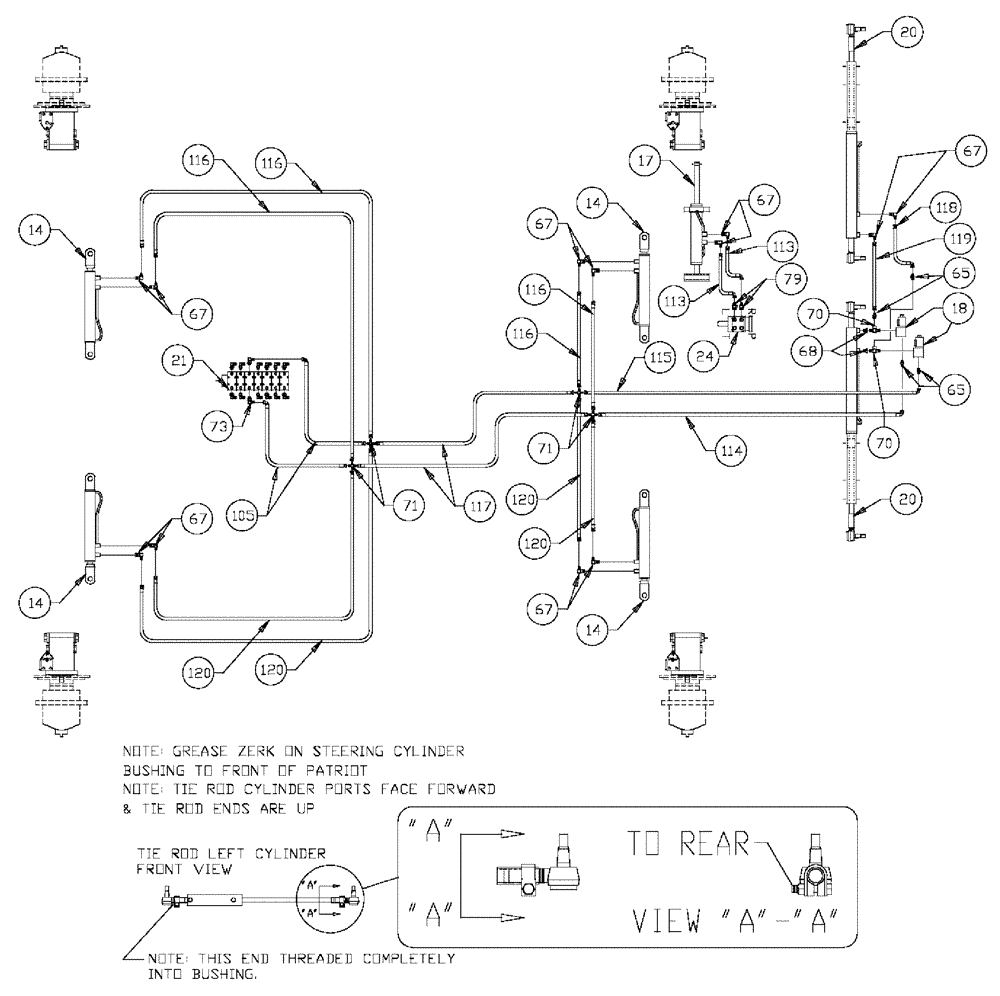

Запчасти Case IH 3185 (06-003) - STEERING 7-BANK VALVE Hydraulic Plumbing

14

87270926

CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

Hydraulic, 2.50 x 16 x 1.25

4шт.

See Fig. 07-001

1шт.

17

87270933

HYDRAULIC CYLINDER,Double Acting, 19.05mm Rod, 203.2mm Stroke

Hydraulic, 2.00 x 8.00 x 1.0

1шт.

See Fig. 07-011

1шт.

18

BN306166

SOLENOID VALVE

Assy, w/body

2шт.

18a

BN301705

COIL

12VDC, shift w/ female Packard connector

1шт.

Service Parts for Ref. 18

1шт.

18b

BN98204

O-RING

BUNA-N, for BN29788

1шт.

Service Parts for Ref. 18

1шт.

18c

BN98205

O-RING

TOP, LARGE

1шт.

Service Parts for Ref. 18

1шт.

18d

BN306168

VALVE BODY

1шт.

Service Parts for Ref. 18

1шт.

20

87270931

CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

Hydraulic, 2.00 x 16 x 1.25

2шт.

Tie Rod Cylinder - Adjust for 1/4" - 1/2" Toe in (Front of Tires 1/4" - 1/2" less than Rear of Tires at Hub Center Line, with Tire Facing Ahead) Adjust Toe in from Rod (Outer) End of Cylinder

1шт.

See Fig. 07-012

1шт.

20a

359775A1

END ASSY.

Tie Rod, RH 1"-16 Thread

4шт.

Associated Part of Hyd Cylinder Tie Rod, P/N 87270931

1шт.

20b

BN4851

STAPLE

CLAMP ASSY - W/BOLT (TIE ROD END)

4шт.

Associated Part of Hyd Cylinder Tie Rod, P/N 87270931

1шт.

21

87272373

7 BANK

1шт.

See Fig. 06-014

1шт.

24

NSS

NOT SOLD SEPARAT

ORBITROL, STEERING CONTROL

1шт.

See Fig. 01-006

1шт.

24a

BN98233

SEAL KIT

FOR ORBITROL, STEERING CONTROL

1шт.

Service Parts for Ref. 24

1шт.

65

BN21355

ADAPTER,1/4"-18 NPT x 7/16-20 JIC

4шт.

67

BN21401

ELBOW,90 Degree 3/8" NPT x 7/16"-20 JIC

13шт.

68

BN51352

BUSHING

1/4-18 x 3/8-18 NPT

2шт.

70

BN53712

TEE

1/4" NPT

2шт.

71

BN54043

ADAPTER

cross, 1/4" jic

4шт.

73

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

14шт.

73a

BN98019

O-RING

#6

14шт.

Associated Part of Adapter, 90 Deg 9/16-18 O-ring X 7/16-20 Jic, P/N BN22160

1шт.

79

BN21249

ADAPTER,3/4" - 16 ORFS x 7/16" - 20 JIC

2шт.

79a

BN98018

O-RING

#8

2шт.

Associated Part of Adapter, 3/4-16 O-ring X 7/16-20 Jic, P/N BN21249

1шт.

105

BN54161

HOSE,0.25" ID x 52.00", SAE 100R1

2шт.

113

BN53814

HOSE

1/4" x 62"

2шт.

114

BN54155

HOSE,0.25" ID x 33.00", SAE 100R1

1шт.

115

BN54156

HOSE,0.25" ID x 30.00", SAE 100R1

1шт.

116

BN54185

HOSE

1/4" ID x 64" 100 R1

4шт.

117

BN54158

HOSE,0.25" ID x 114.00", SAE 100R1

2шт.

118

BN54159

HOSE,0.25" ID x 28.00", SAE 100R1

1шт.

119

BN53964

HOSE

1/4" ID x 15" 100R1

1шт.

120

BN53604

HOSE

1/4" x 40"

4шт.
