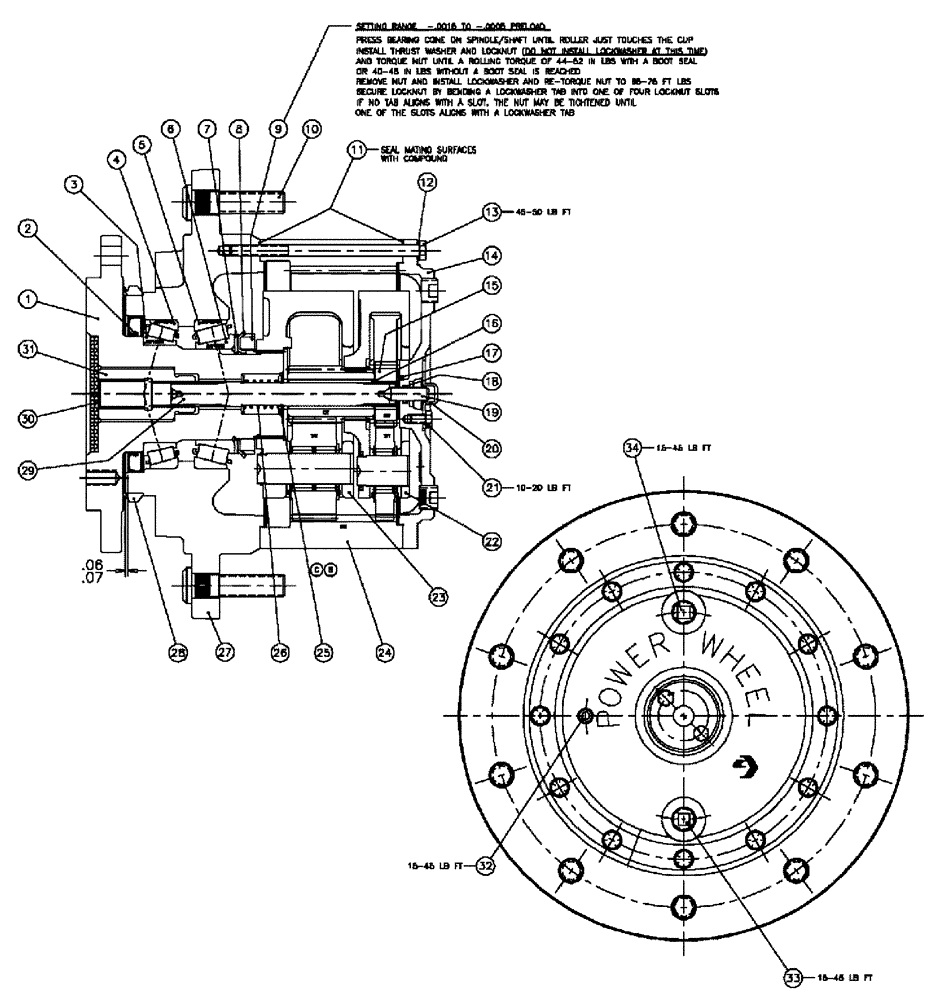

Запчасти Case IH 3185 (05-002) - HUB ASSEMBLY #8, 30:1 WO/B Hub, Wheel & Tires

1

BN313477

SPINDLE

Auburn (#8 hub)

1шт.

2

BN98810

SEAL

oil

1шт.

3

BN98812

ROLLER BEARING

1шт.

4

9823418

BEARING CUP,130mm OD x 24mm W

1шт.

5

BN98825

BEARING CUP

1шт.

6

BN98826

ROLLER BEARING

1шт.

7

BN98844

THRUST WASHER

1шт.

8

BN98818

LOCK WASHER

1шт.

9

BN98829

LOCK NUT

1шт.

10

BN98840

BOLT

wheel #8B hub

10шт.

12

BN98494

WASHER

flat

12шт.

13

BN98838

BOLT

3/8-16 x 6-3/4", Thread Length 1-1/4", Hex Head

12шт.

14

BN302055

COVER

hub - #8

1шт.

15

BN69533

SUN GEAR

primary 30:1 non brake (20 teeth)

1шт.

16

BN98827

RING

retaining

2шт.

17

BN98501

THRUST WASHER

Large

1шт.

18

BN98729

SEAL

plunger

1шт.

19

BN98728

PLUNGER

disengage

1шт.

20

87270244

COVER

DISENGAGE-AUBURN

1шт.

21

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

22

BN69530

CARRIER

primary assembly - 30:1 non brake (3 gears, 32 teeth each) (secondary sun gear - 17 teeth)

1шт.

This Part must Be Replaced as an Assembly; it Cannot Be Rebuilt

1шт.

23

BN69528

CARRIER

30:1

1шт.

This Part must Be Replaced as an Assembly; it Cannot Be Rebuilt

1шт.

24

BN69527

RING GEAR

30:1, W/O BRAKE

1шт.

25

BN98843

WASHER

thrust

2шт.

26

BN98830

SPRING

1шт.

27

BN313469

HUB

Auburn

1шт.

28

BN98817

SEAL

trash

1шт.

29

BN98841

SHAFT

Input, 191mm OAL, 12 Teeth on Small End, 13 Teeth on Large End

1шт.

30

BN313469

HUB

Auburn

1шт.

31

BN98822

COUPLING

8"

1шт.

32

BN98819

PLUG

pipe

1шт.

33

BN98487

PLUG

magnetic

1шт.

34

BN313503

PLUG

Auburn

1шт.

36

BN313465

BRAKE ASSY.

SEE FIG 05-003

1шт.

37

BN98487

PLUG

magnetic

1шт.

38

BN313503

PLUG

Auburn

1шт.

39

BN98819

PLUG

pipe

1шт.
