Запчасти Case IH 3185 (01-013) - AIR SEAT GROUP, SST, 961/2 Cab Interior

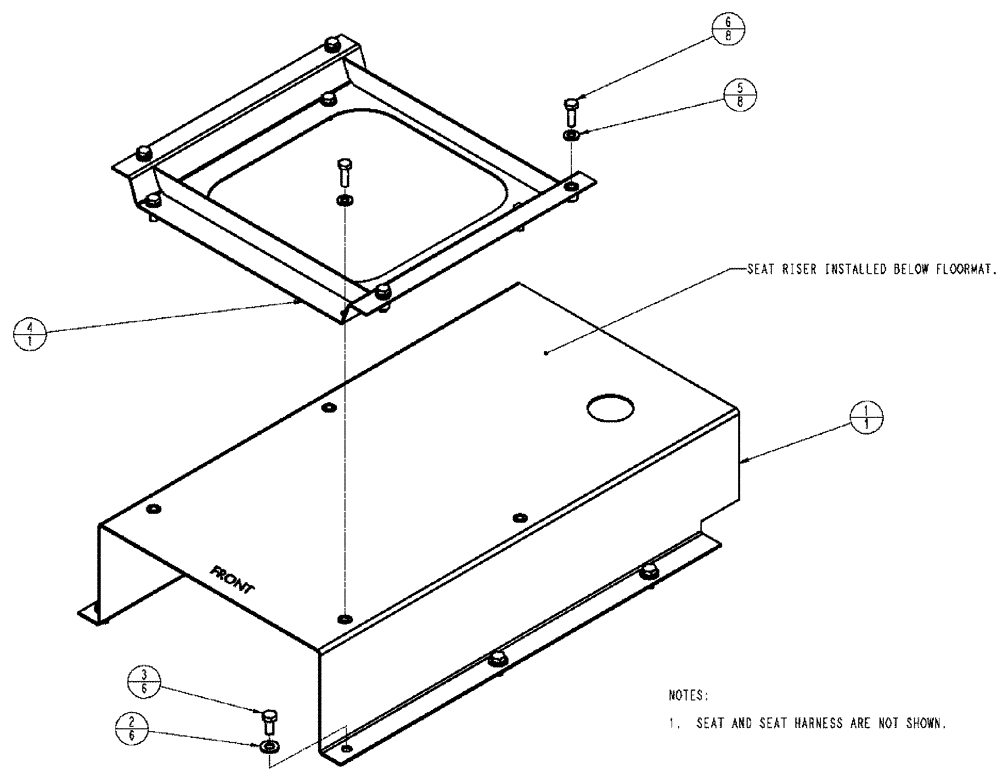

Схема запчастей Case IH 3185 - (01-013) - AIR SEAT GROUP, SST, 961/2 Cab Interior
6
3
4
5
1
2

Артикул

Название

Примечание

Количество

1

87268234

RISER

Seat Assembly

1шт.

2

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

3

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

6шт.

4

87268217

ADAPTER

seat, Sears

1шт.

5

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

8шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

7

87268230

DRIVER SEAT

SST Air, 9535 Gray

1шт.

Not Shown

1шт.

8

87667331

SEAT BACK

Top Portion, Complete

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

9

87667332

SEAT CUSHION

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

10

87416487

KIT

Back Cushion

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

11

87667333

SEAT BELT

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

12

87667334

SEAT SUPPORT

Frame, Top

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

13

87308130

SEAT BACK ADJUST DEV

Lumbar

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

14

87567149

ARM

assembly, LH with bracket-seat

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

15

87667335

ARMREST

seat, LH

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

16

87667337

ARMREST

Assembly Kit, RH With Bracket

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

17

87667336

ARMREST

seat, RH

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

18

87347940

ROCKER SWITCH

Seat, Valve Combo

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

19

86994165

SEAT ACCESSORY

Recliner Kit

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

20

87416475

KNOB

Recliner Control

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

21

87037462

SEAT BACK ADJUST DEV

Lumbar Knob Kit

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

22

87667338

SEAT SUPPORT

Assembly, LP Air Slides

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

23

87347962

SERVICE KIT

Boot, Seat

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

24

87347964

SERVICE KIT

Harness, Seat & Suspension

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

25

143786A1

SHAFT,308.9mm L

bearing

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

26

87347967

BEARING ASSY

BEARING, SEAT

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

27

87352582

SERVICE KIT

Seat Bumper

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

28

87352578

SERVICE KIT

Seat Airline

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

29

87667330

SHOCK ABSORBER

Seat

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

30

82030804

KIT

Compressor

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

31

82020819

KIT

air spring service

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

32

87416482

KIT

locking slide

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

33

87405471

SEAT ACCESSORY

Lever, Slide Release

1шт.

Associated Part of Seat, SST Air 9535 Gray, P/N 87268230

1шт.

Выбрано товаров: 60
