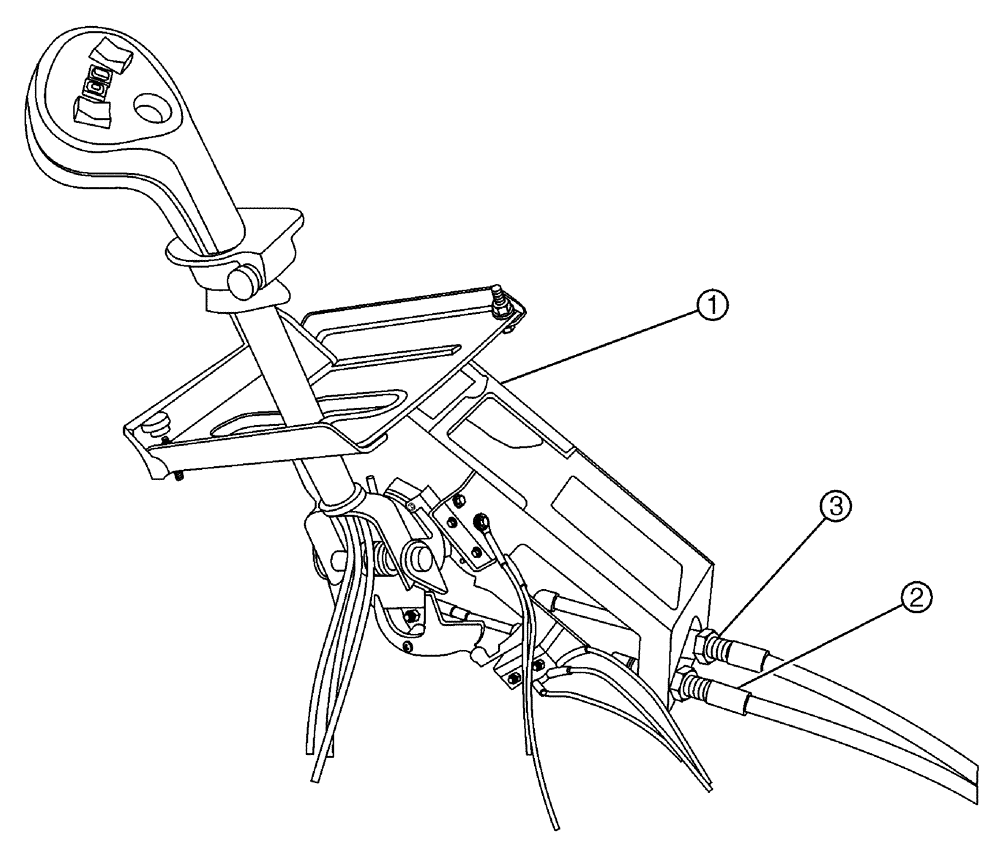

Запчасти Case IH 3185 (01-012) - SHIFT, THROTTLE CONTROL GROUP Cab Interior

1

87270574

PROP/THROTTLE ASSY, 96 1/2

1шт.

See Fig. 01-008

1шт.

2

BN29256

CABLE,2438.4mm L

Control, 96" (Hydro)

1шт.

3

BN29257

CABLE,Throttle Cable, 2133.6mm L

Control, 84" (Throttle)

1шт.

3a

BN66132

GROMMET

strain relief-bat.

2шт.

Associated Part of Cable, Control (84"), P/N BN29257

1шт.

4

BN29258

CLEVIS

Assembly With Pin

1шт.

Not Shown

1шт.

4a

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

4b

87270519

WIRE HARNESS

PROP HNDLE RETRO

1шт.
