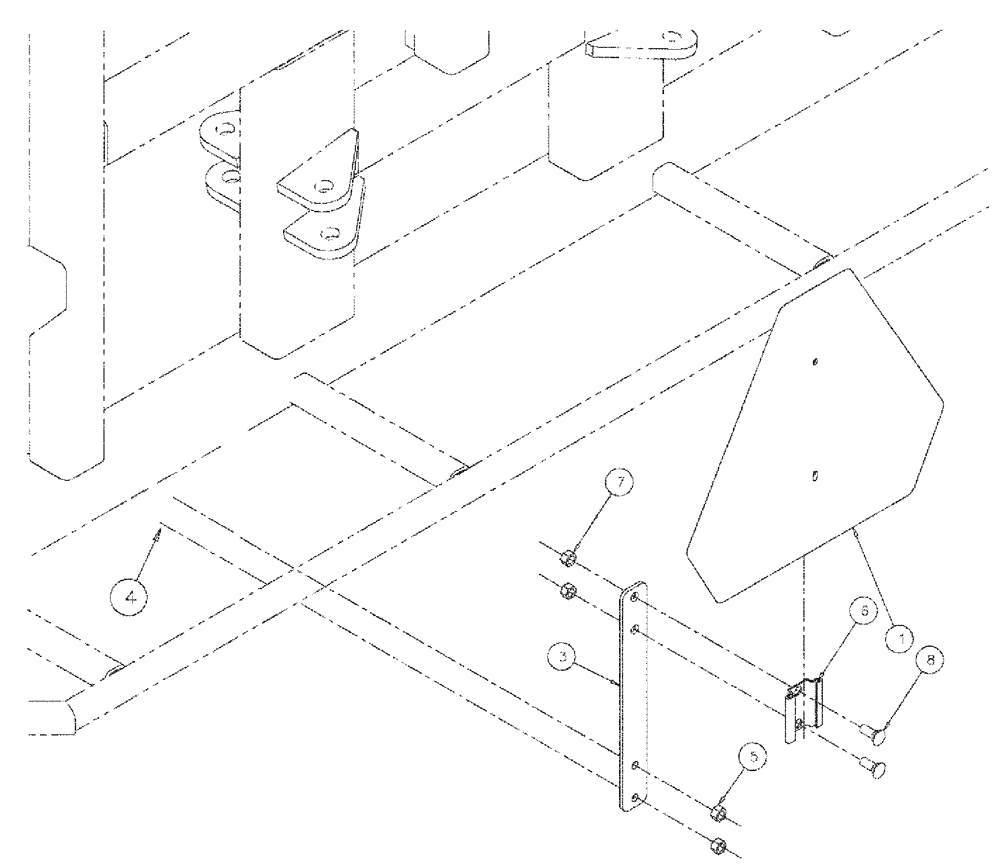

Запчасти Case IH 3185 (10-008) - SMV GROUP (13) - DECALS

1

A59450

WARNING SIGN

Emblem Assembly, SMV

1шт.

3

BN313098

MOUNTING PARTS

SMV

1шт.

4

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

1шт.

5

87343974

NUT,Prev Torque, 3/8" - 16, Gr C, DOR

2шт.

6

847590

BRACKET

socket, female, SMV emblem

1шт.

7

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

-

2шт.

8

BN50222

BOLT

5/16-18 X.75, TH, SS, PH

2шт.
