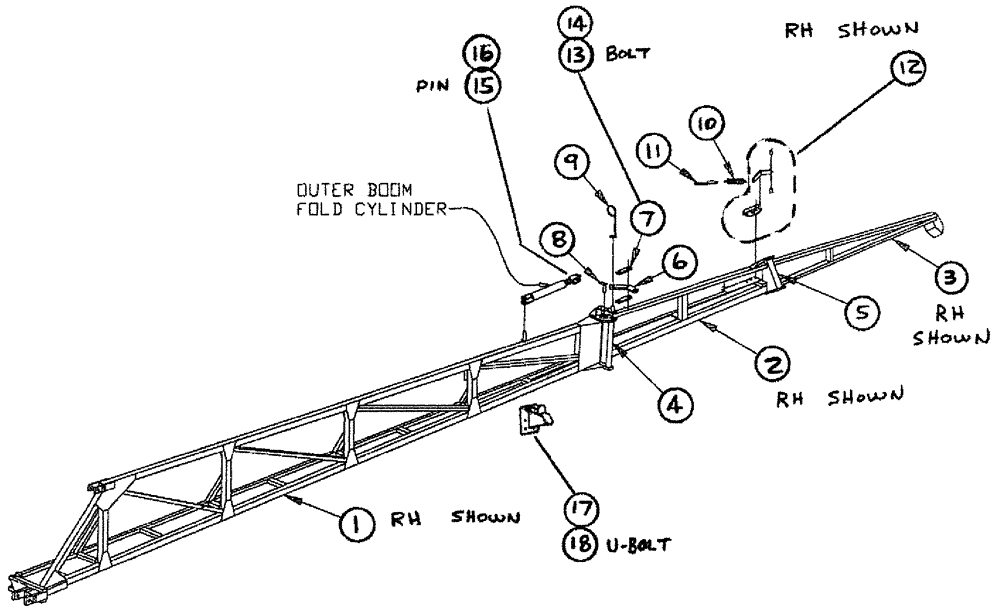

Запчасти Case IH 3185 (08-006) - BOOM GROUP, RH, 90 (09) - BOOMS

1

342253A1

ARM

boom RH, inner 90' 785

1шт.

2

BN310965

BOOM

Fold - RH

1шт.

3

BN310874

BOOM

Breakaway 90', RH

1шт.

4

BN66628

PIN

90' boom

1шт.

5

BN24487

PIN

75' boom

1шт.

6

BN21414A

BAR

3/4" HRS 4.62 x 9.06

1шт.

7

BN21410A

BAR

1/2" x 1 1/2" x 5 3/4"

2шт.

8

BN22456

PIN,19.05mm OD x 81.28mm L

boom pivot

1шт.

9

BN24490

BRACKET

hose guide

1шт.

10

BN24468

SPRING

tension 1.25" x 5.5"

1шт.

11

BN310970

TENSION SPRING

SPRING OR DR

1шт.

12

BN27485

SERVICE KIT

RH Breakaway, 75' Boom

1шт.

88902

NUT,3/8"-16

4шт.

Parts of Hardware Package, R.H. Breakaway 75' Boom, P/N BN27485

1шт.

BN24500

BRACKET

75' Boom Latch RH

1шт.

Parts of Hardware Package, R.H. Breakaway 75' Boom, P/N BN27485

1шт.

BN50258

BOLT,3/8"-16 X 1.25", Stainless

1шт.

Parts of Hardware Package, R.H. Breakaway 75' Boom, P/N BN27485

1шт.

86992215

LOCK NUT,1/2"-13, GC

1шт.

Parts of Hardware Package, R.H. Breakaway 75' Boom, P/N BN27485

1шт.

BN24452

LATCH

Mount - Breakaway, 75' boom

1шт.

Parts of Hardware Package, R.H. Breakaway 75' Boom, P/N BN27485

1шт.

BN19820

SPACER,10.92mm ID x 22.1mm OD x 36.2mm L

plastic .37 id x 1.42

2шт.

Parts of Hardware Package, R.H. Breakaway 75' Boom, P/N BN27485

1шт.

13

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

14

280375

NUT,3/4"-10, GC

3шт.

15

86632567

HEADED PIN,30.14mm OD x 66.55mm L

1шт.

16

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 X 2"

2шт.

17

BN67266

COVER

CRADLE WLDT

1шт.

18

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

2шт.

280736

NUT,5/16"-18, GC

3шт.

88902

NUT,3/8"-16

3шт.

86992215

LOCK NUT,1/2"-13, GC

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.

BN50145

WASHER

3/8, FW, G5

6шт.

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

BN50258

BOLT,3/8"-16 X 1.25", Stainless

3шт.
