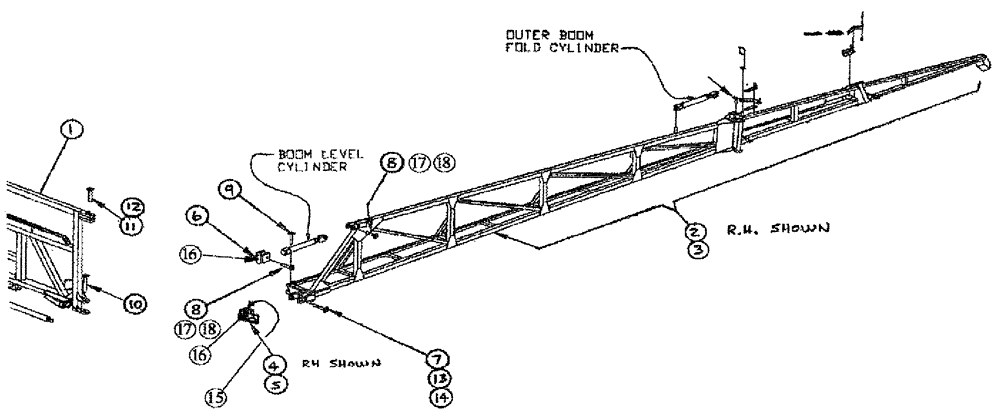

Запчасти Case IH 3185 (08-005) - BOOM GROUP, 90 (09) - BOOMS

1

NS

NOT SERVICED

Center Section Group 90' (785)

1шт.

See Fig. 08-008

1шт.

2

NS

NOT SERVICED

Boom Group RH 90' (785)

1шт.

See Fig. 08-006

1шт.

3

NS

NOT SERVICED

Boom Group LH 90' (785)

1шт.

See Fig. 08-007

1шт.

4

342088A1

BRACKET

pivot, RH (BM) 1.25"

1шт.

5

342089A1

BRACKET

pivot, LH (BM) 1.25"

1шт.

6

BN66521

HINGE

Upper Boom

2шт.

7

342260A1

PIN,31.75mm OD x 203.2mm L

pivot, inner boom

2шт.

8

439-51672

HEADED PIN,25.4mm OD x 114.3mm L

4шт.

9

BN324141

PIN

boom pivot

2шт.

10

BN322485

PIN

BOOM PIVOT

2шт.

11

BN300279

PIN

1 1/4" X 4 1/2"

2шт.

12

BN52330

PIN, ROLL

1/4 X 1 3/4

6шт.

13

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

1шт.

14

88902

NUT,3/8"-16

2шт.

15

87414

LUBE NIPPLE,1/4" - 28

2шт.

16

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

4шт.

17

86980363

BOLT,Hex, M6 - 1 x 35mm, Cl 8.8, DOR

M6-1 X 35, 8.8, DOR

4шт.

18

353308

NUT,M6 x 1.0, Cl 8

4шт.
