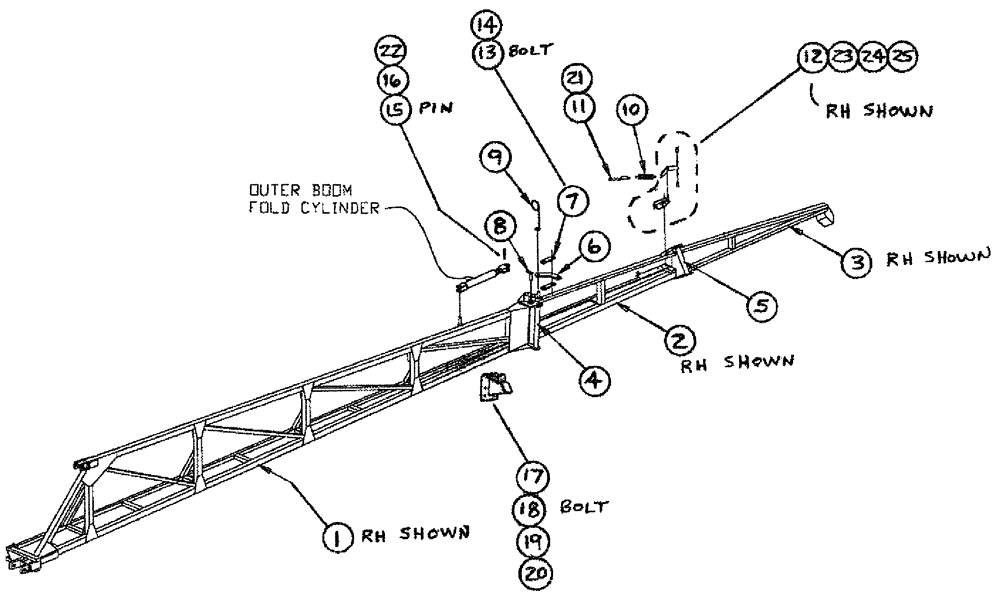

Запчасти Case IH 3185 (08-002) - BOOM ASSEMBLY, RH, 75 (09) - BOOMS
№
Артикул
Название
Примечание
Количество
1
BN24390A
BOOM
RH INNER 75'
1шт.
2
BN310958
BOOM
RH, fold
1шт.
3
BN310869
BOOM
Breakaway - RH
1шт.
4
BN09270
PIN
75' boom
1шт.
5
BN24487
PIN
75' boom
1шт.
6
BN21414A
BAR
3/4" HRS 4.62 x 9.06
1шт.
7
BN21410A
BAR
1/2" x 1 1/2" x 5 3/4"
2шт.
8
BN22456
PIN,19.05mm OD x 81.28mm L
boom pivot
1шт.
9
BN24490
BRACKET
hose guide
1шт.
10
BN24468
SPRING
tension 1.25" x 5.5"
1шт.
11
BN310970
TENSION SPRING
DR
1шт.
11
88275
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5
2шт.
11
BN10465
NIPPLE, LUBE,1/4"-28 st
NIPPLE
4шт.
12
BN27485
SERVICE KIT
RH Breakaway, 75' Boom
1шт.
88902
NUT,3/8"-16
4шт.
Parts of Hardware Package, R.H. Breakaway 75' Boom, P/N BN27485
1шт.
BN24500
BRACKET
75' Boom Latch RH
1шт.
Parts of Hardware Package, R.H. Breakaway 75' Boom, P/N BN27485
1шт.
BN50258
BOLT,3/8"-16 X 1.25", Stainless
1шт.
Parts of Hardware Package, R.H. Breakaway 75' Boom, P/N BN27485
1шт.
86992215
LOCK NUT,1/2"-13, GC
1шт.
Parts of Hardware Package, R.H. Breakaway 75' Boom, P/N BN27485
1шт.
BN24452
LATCH
Mount - Breakaway, 75' boom
1шт.
Parts of Hardware Package, R.H. Breakaway 75' Boom, P/N BN27485
1шт.
BN19820
SPACER,10.92mm ID x 22.1mm OD x 36.2mm L
plastic .37 id x 1.42
2шт.
Parts of Hardware Package, R.H. Breakaway 75' Boom, P/N BN27485
1шт.
13
87337
BOLT,Hex, 3/4" - 10 x 3", Gr 5
1шт.
14
280375
NUT,3/4"-10, GC
3шт.
15
86632567
HEADED PIN,30.14mm OD x 66.55mm L
1шт.
15
9635884
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
1шт.
16
BN50601
PIN, SPLIT (COTTER)
PIN, COTTER 3/16 X 2"
4шт.
17
BN67185
CRADLE
boom
1шт.
19
BN50141
WASHER
5/16, FW, G5
4шт.
20
280736
NUT,5/16"-18, GC
7шт.
21
86992215
LOCK NUT,1/2"-13, GC
2шт.
22
87529238
WASHER,1.06" ID x 2" OD x 0.13" Thk
1.0625 x 2 x 0.134 HTS DOR
6шт.
23
BN50258
BOLT,3/8"-16 X 1.25", Stainless
3шт.
25
88902
NUT,3/8"-16
3шт.
Выбрано товаров: 41
