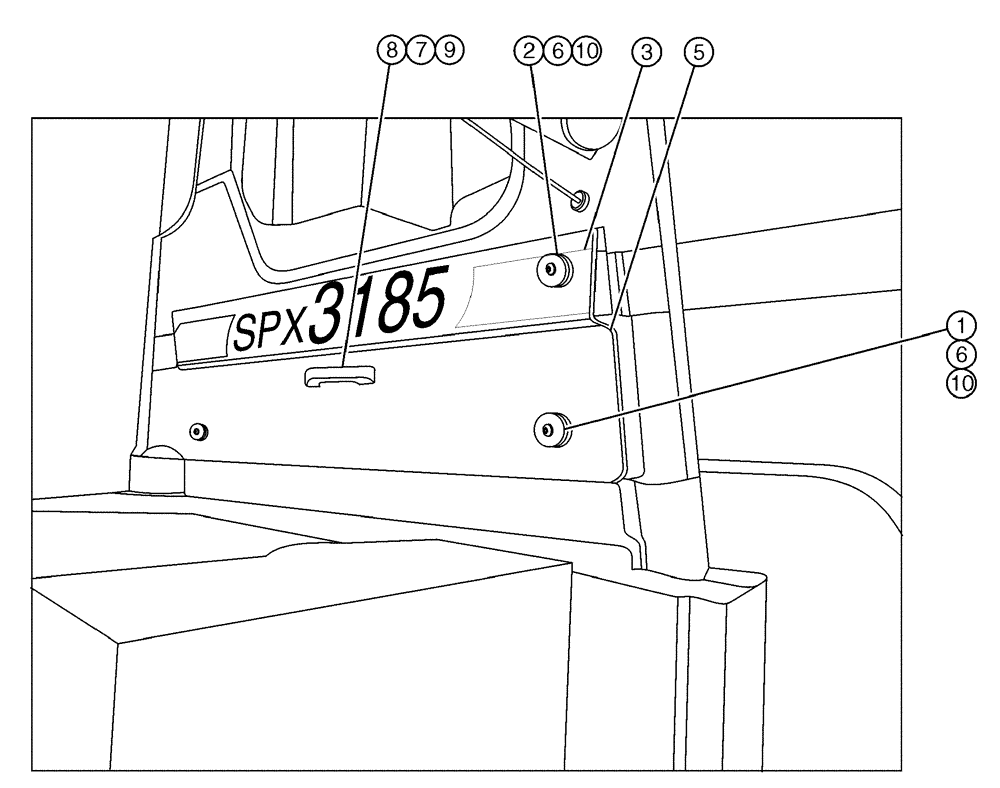

Запчасти Case IH 3185 (02-013) - ACCESS PANEL ASSEMBLY, RH Cab Exterior

1

80280644

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

2шт.

2

113-82

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

2шт.

3

342161A1

STIFFENER

panel

1шт.

4

84167814

RUBBER SEAL

Conveyor Access

1шт.

Not Shown, Behind Side Access Panel

1шт.

5

BN303165

PANEL, SIDE

SIDE ACCESS

1шт.

6

BN303278

WASHER

3/8, NP, SS

4шт.

7

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

2шт.

8

BN311626

HANDLE

Molded Grab, Black

1шт.

9

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

2шт.

10

BN65448

KNOB

3/8" - 16(F)

4шт.
