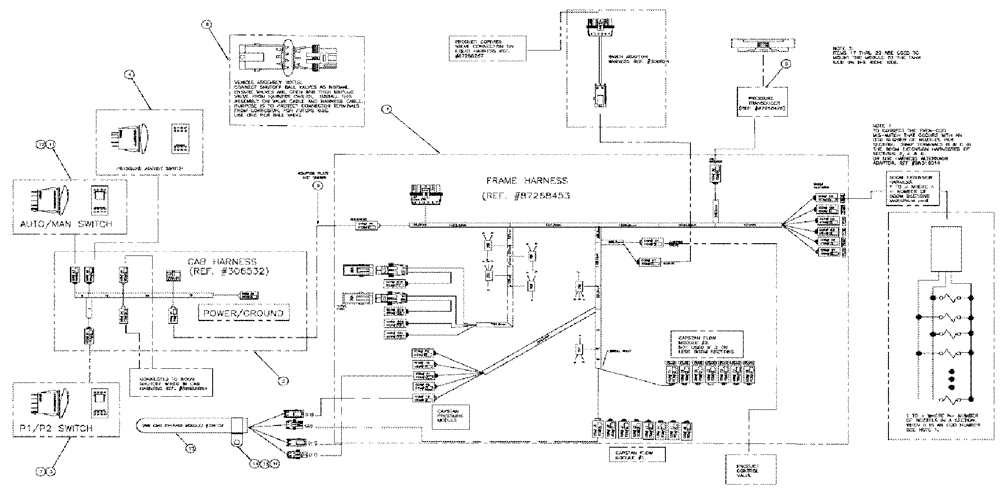

Запчасти Case IH 3185 (12-017) - AIM COMMAND ELECTRICAL GROUP (06) - ELECTRICAL

1

87268453

WIRE HARNESS

AIM CMD 3185.

1шт.

2

BN306532

HARNESS

SYNCHRO CAB

1шт.

3

BN65934

SWITCH

Single Pole, On-Off

1шт.

4

BN65942

SWITCH

W/ACT On-Off-On

1шт.

6

87272273

SENSOR

Harness Assembly, AIM Command

1шт.

87271580

SENSOR

pressure aim command

1шт.

Associated Part of Sensor, Harness Assy, P/N 87272273

1шт.

7

BN65938

ROCKER

Actuator - Switch

1шт.

8

BN318073

ELECTRO/HYD CONTACT

ISO.

6шт.

9

BN309260

ADAPTER

assembly, plate

1шт.

10

BN319071

INSTRUCT., A.C TO AIM CMD

1шт.

11

BN306319

SWITCH

Carling, On Off On, Fence Row

1шт.

12

BN306320

SWITCH

Actuator

1шт.

13

BN324107

MODULE

AIM CMD BY-PASS

1шт.

14

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

1шт.

15

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

16

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

1шт.

17

88902

NUT,3/8"-16

6шт.

18

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

2шт.

19

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

2шт.

20

BN323957

BRACKET

MOUNT WDMT, SPRAY BAR

2шт.
