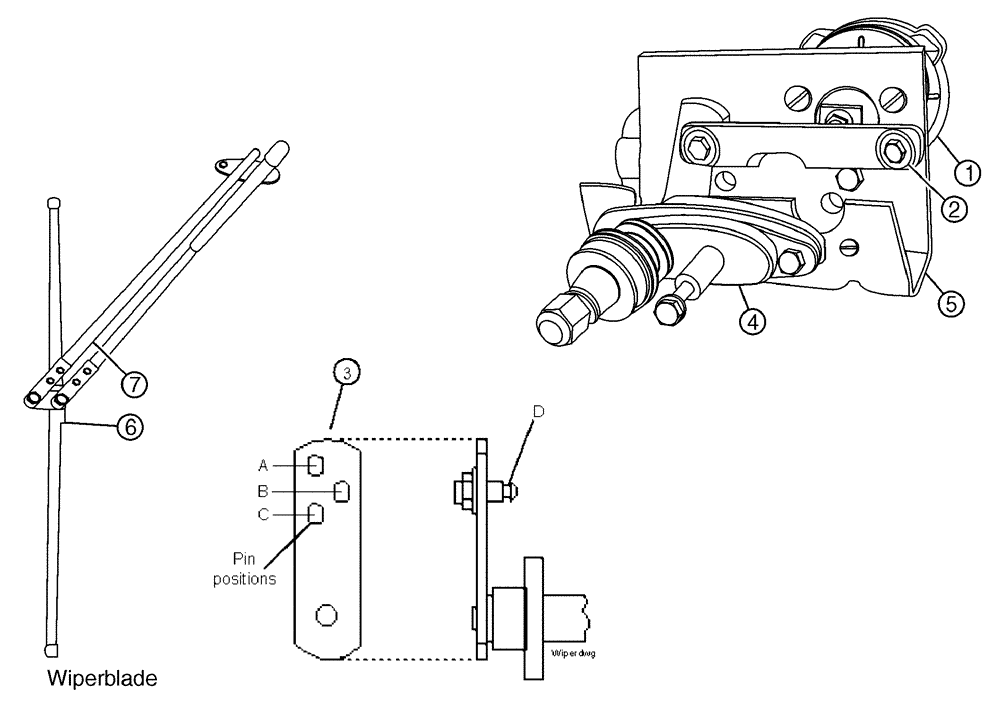

Запчасти Case IH 3185 (02-012) - WINDSHIELD WIPER Cab Exterior

1

BN63683

WIPER MOTOR

Assy (Incl. Ref 1- 5)

1шт.

1

BN29267

WIPER MOTOR

MOTOR, WIPER 2 Speed, 12V

1шт.

2

BN29268

DRIVE

Arm-wiper

1шт.

3

137961A1

SHAFT

And Pivot Assembly

1шт.

4

133935A1

PACKAGE

pantograph

1шт.

4a

BN50939

BOLT

1/4"-28 x .5, SS

2шт.

Associated Part of Adapter, Pantograph Arm, Bk, P/N 133935A1

1шт.

5

BN29881

BRACKET

Mount - Wiper Motor

1шт.

5a

280129

NUT,1/4"-20

1шт.

Associated Part of Mount, Wiper Motor, P/N BN29881

1шт.

5b

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

1шт.

Associated Part of Mount, Wiper Motor, P/N BN29881

1шт.

6

353273A1

BLADE,558.8mm L

Front Wiper, 22"

1шт.

7

87557932

WIPER ARM

20"

1шт.
