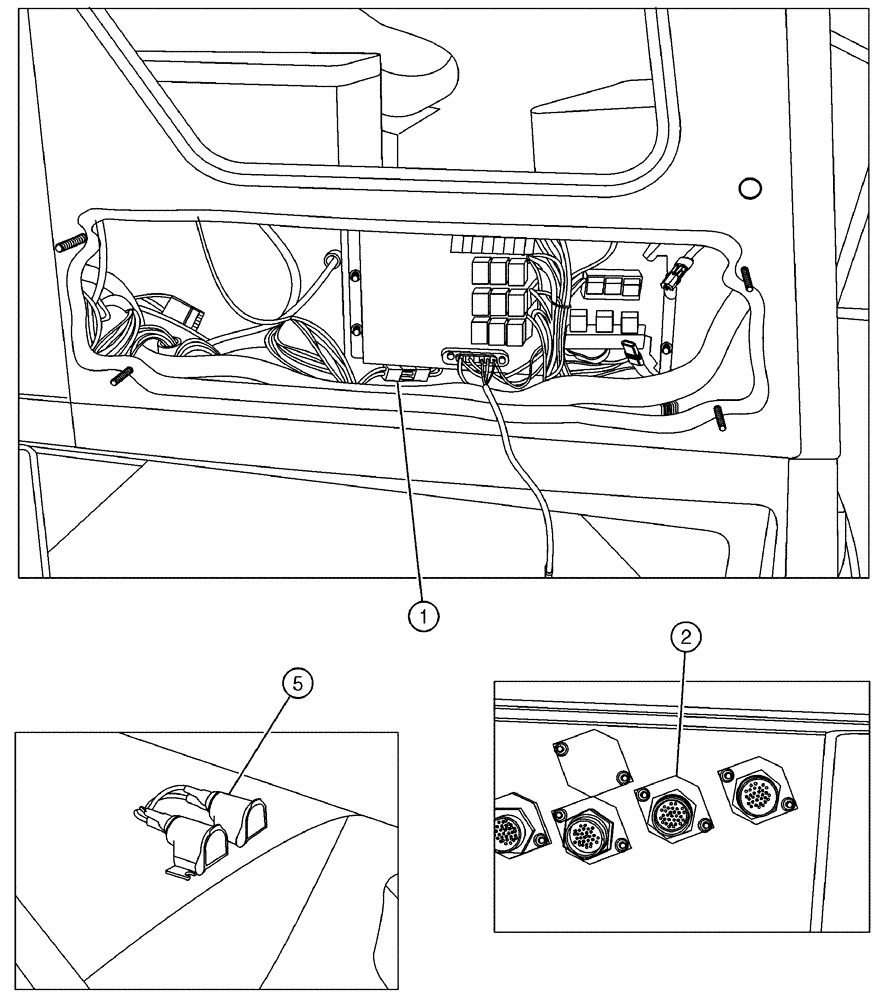

Запчасти Case IH 3185 (12-005[01]) - CAB HARNESS PACKAGE (06) - ELECTRICAL

1

87271598

MODULE

Main Electrical Cab, Start Serial: 7305

1шт.

See Fig. 12-006

1шт.

86986073

HARNESS

Panel, Electric Assembly

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

86986069

HARNESS

Main Cab 781D

1шт.

Parts of Module, Main Electrical Assy, P/N 87271598 or 86986073

1шт.

86986073

HARNESS

Panel, Electric Assembly

1шт.

Parts of Module, Main Electrical Assy, P/N 87271598 or 86986073

1шт.

2

BN309260

ADAPTER

assembly, plate

4шт.

BN306201

PLATE

22W ped to D Deutsch

1шт.

Parts of Assy, Plate Adapter, P/N BN309260

1шт.

BN50052

LOCK NUT,1/4"-20, USR, SS

2шт.

Parts of Assy, Plate Adapter, P/N BN309260

1шт.

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

1шт.

Parts of Assy, Plate Adapter, P/N BN309260

1шт.

3

BN320017

CABLE

Positive, C.B./Cab

1шт.

4

BN68776

WIRE HARNESS

WIRE ASSY WORK LIGHTS

1шт.

5

BN68777

WIRE HARNESS

WIRE HARNESS CAB AUX SUP

1шт.

BN307101

CABLE

8 GA. X 14" (ELECTRICAL PANEL TO CAB)

1шт.

BN50054

NUT,1/4"-20, SS

1шт.

BN50691

BOLT,Hex, 1/2" - 13 x 1", SST

1/2"-13 x 1, Stainless Steel

1шт.

BN311017

LOCK WASHER

1/4, EXT-TOOTH

2шт.

BN50138

WASHER,1/4", SS

2шт.
