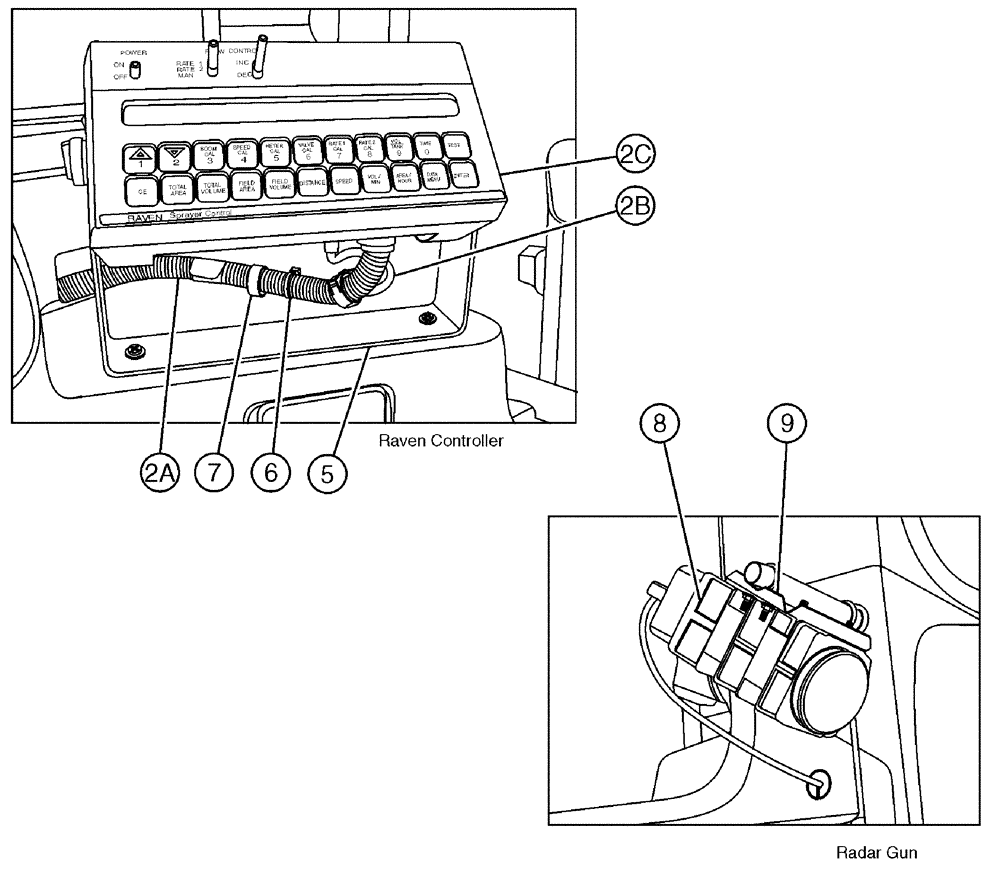

Запчасти Case IH 3185 (12-004) - RAVEN CONTRLLER (06) - ELECTRICAL

2

BN300981

CONTROL UNIT

Raven 460

1шт.

2a

87268378

WIRE HARNESS

1шт.

2b

BN314211

WIRE HARNESS

Console

1шт.

2c

BN323406

CONTROL UNIT

Raven SCS 460

1шт.

3

BN53744

FLEXIBLE HOSE,1.00" ID x 65.00"

1шт.

5

BN69629

SUPPORT

Raven Controller

1шт.

6

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

7

87485002

CLAMP,1.06" - 2"

24 2.0/1.06 F SST 300

2шт.

8

BN95030A

RADAR

1шт.

8

BN95030AR

SENSOR

3185 PATRIOT SPRAYER (8/04-5/09)

1шт.

8

BN95030AC

CORE-SENSOR

Return Number

1шт.

9

BN98411

BRACKET

Kit, Mtg - Radar Gun

1шт.

ns

BN315877

SCREW,1/4" - 20 x 1"

2шт.

ns

BN55359

LOCK NUT,1/4"-20, SS

2шт.

ns

87271881

SETTINGS 460

1шт.
