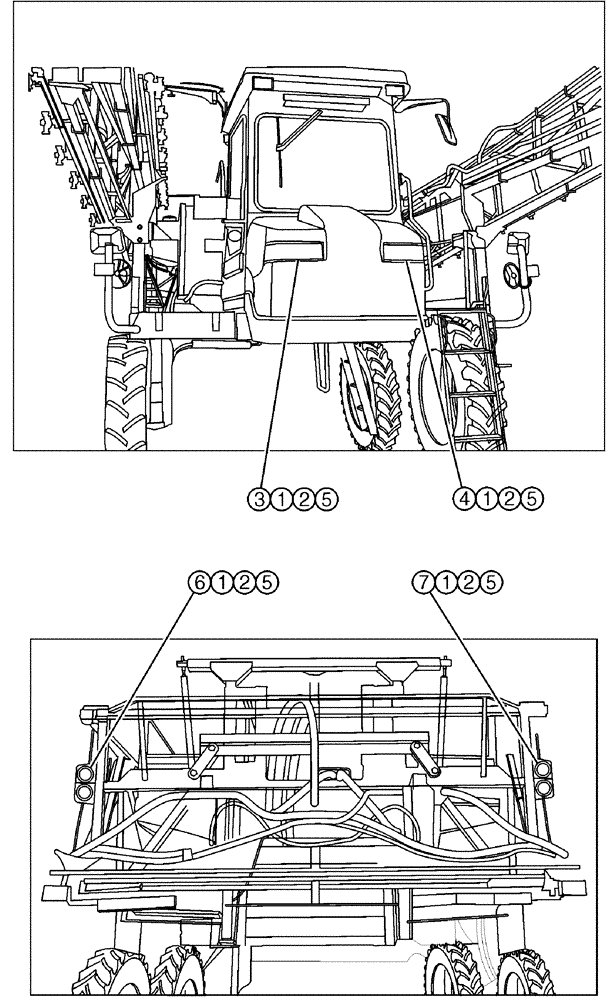

Запчасти Case IH 3185 (12-003) - ELECTRICAL GROUP (06) - ELECTRICAL

343927A1

WIRE HARNESS

FRAME LITES

1шт.

87268813

WIRE HARNESS

Engine & Sensor 785A

1шт.

See Fig. 12-001

1шт.

NS

NOT SERVICED

Wire Harness Assembly

1шт.

See Fig. 12-001

1шт.

NS

NOT SERVICED

Wire Harness Assembly

1шт.

See Fig. 12-001

1шт.

87267290

WIRE HARNESS

Valve Bank 781D

1шт.

See Fig. 12-001

1шт.

87268424

WIRE HARNESS

AXLE LOCK IN/OUT

1шт.

BN317222

LIGHT GROUP, ELECTRICAL

1шт.

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

8шт.

353308

NUT,M6 x 1.0, Cl 8

8шт.

BN300054

HEADLIGHT

Assy, RH

1шт.

BN300052

HOUSING

Headlamp, RH

1шт.

Parts of Headlamp Assy, R.H., P/N BN300054

1шт.

BN300056

LAMP

Halogen, Inner, 50 Watt

2шт.

Parts of Headlamp Assy, R.H., P/N BN300054

1шт.

BN300057

LAMP

Halogen, Outer, 37 Watt

1шт.

Parts of Headlamp Assy, R.H., P/N BN300054

1шт.

BN300055

HEADLIGHT

Assembly, LH

1шт.

BN300055

HEADLIGHT

Assembly, LH

1шт.

Parts of Headlamp Assy, L.H., P/N BN300055

1шт.

BN300056

LAMP

Halogen, Inner, 50 Watt

2шт.

Parts of Headlamp Assy, L.H., P/N BN300055

1шт.

BN300057

LAMP

Halogen, Outer, 37 Watt

1шт.

Parts of Headlamp Assy, L.H., P/N BN300055

1шт.

BN300496

WASHER

M6, Flat, 10.9

8шт.

BN307190

LIGHT

DUAL-W/BRAKE L.H.

1шт.

BN307191

LIGHT

DUAL-W/BRAKE R.H.

1шт.

NS

NOT SERVICED

Wire Harness Assembly

1шт.

See Fig. 12-001

1шт.
