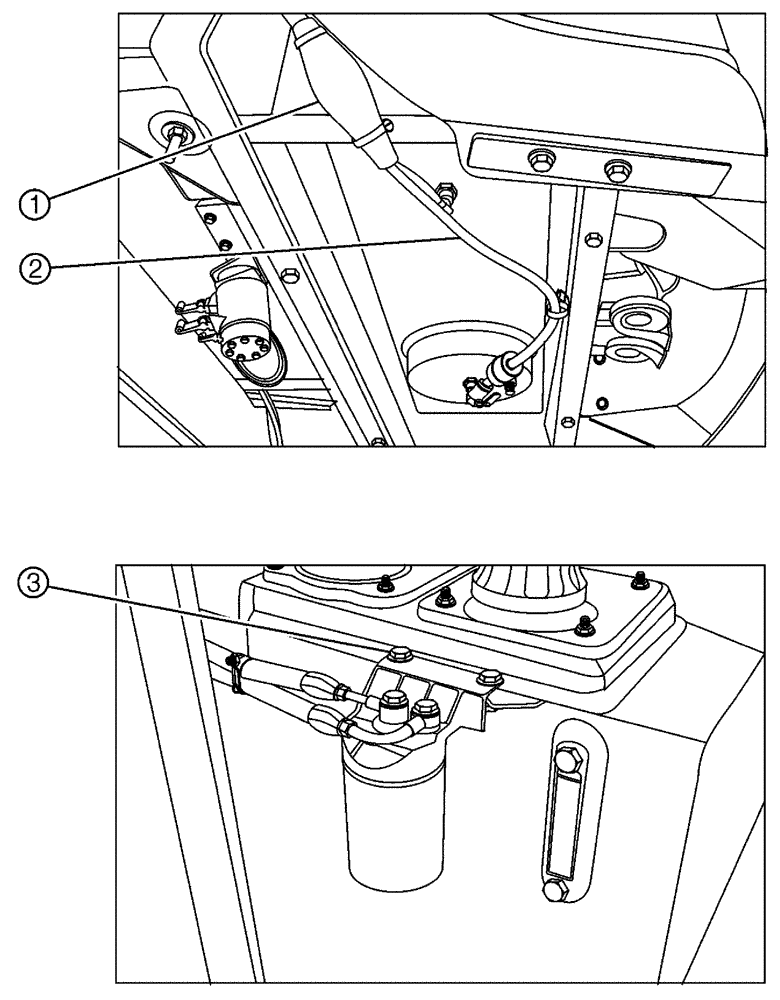

Запчасти Case IH 3185 (03-041) - FUEL DELIVERY SYSTEM (01) - ENGINE

1

BN313523

SLEEVE

hose, nylon, 6"

1шт.

2

BN318839

FUEL HOSE,9.53 mm ID x 3937.00 mm, SAE 30R6, SAE 30R7

fuel 3/8" x 155"

2шт.

3

BN320236

HDWE, FUEL FILTER MTG, SEE FIG 03-043

1шт.

4

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

3шт.

Parts of Package., Hardware, Fuel Filter Mounting, P/N BN320236

1шт.

5

BN50142

WASHER,5/16", Stainless Steel

3шт.

Parts of Package., Hardware, Fuel Filter Mounting, P/N BN320236

1шт.

6

257492

CLAMP,14.3mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

Parts of Package., Hardware, Fuel Filter Mounting, P/N BN320236

1шт.

7

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

2шт.

Parts of Package., Hardware, Fuel Filter Mounting, P/N BN320236

1шт.

8

87487826

CLAMP,0.44" - 0.78"

HOSE, 60.78/0.44 M SST 300

1шт.

9

87485000

CLAMP,0.25" - 0.62"

#4, Stainless Steel

3шт.

10

J935740

BANJO BOLT

CONNECTOR

1шт.
