Запчасти Case IH 3185 (03-039) - BATTERY PACKAGE (01) - ENGINE

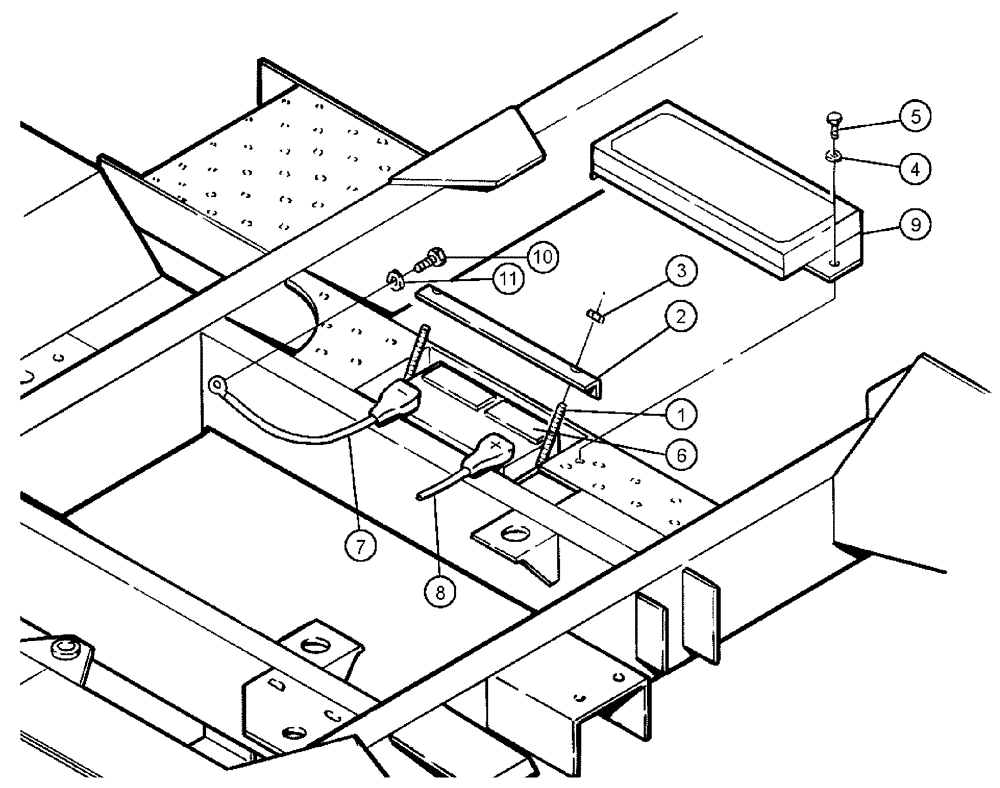

Схема запчастей Case IH 3185 - (03-039) - BATTERY PACKAGE (01) - ENGINE
11
3
10
1
5
9
6
2
7
4
8

Артикул

Название

Примечание

Количество

1

87691876

ROD

Battery Hold Down

2шт.

2

BN29276

ANGLE

Battery Hold Down

1шт.

3

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

-

2шт.

4

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

5

BN50476

BOLT,5/16"-18 x 0.75", Stainless

2шт.

6

A187592

WET BATTERY

12V 950 CCA Post

1шт.

Contact Your Local Vendor for Replacement

1шт.

7

BN313316

NEG BATTERY CABLE

ASSY

1шт.

8

BN311567

POS BATTERY CABLE

1шт.

9

BN66124

COVER

ASSY. BATTERY

1шт.

9a

BN29977

PLATFORM

Safety Walk - Flextread, 6" x 16"

1шт.

Service Parts for Ref. 9

1шт.

9b

BN67240

SEAL

CLIP ON

1шт.

Service Parts for Ref. 9

1шт.

10

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

11

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

Выбрано товаров: 16
