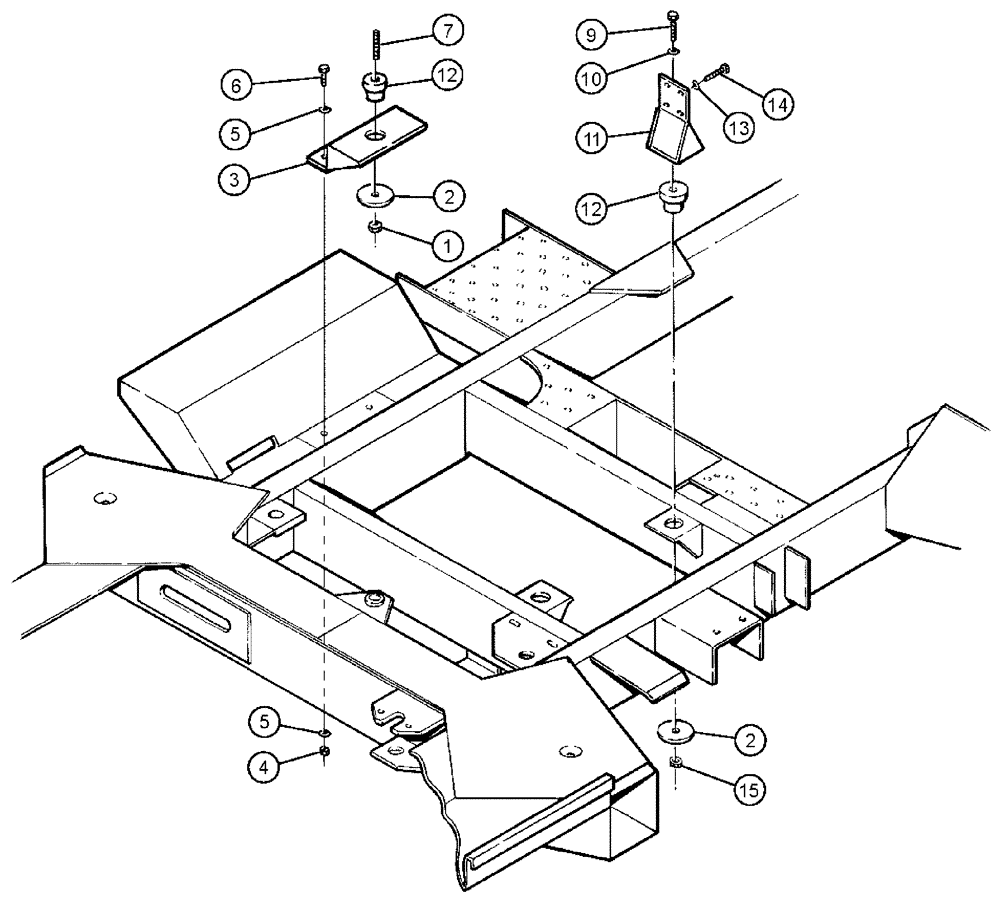

Запчасти Case IH 3185 (03-033) - ENGINE MOUNTING PACKAGE (01) - ENGINE

1

832-46416

NUT,M16 x 2, Cl 8

1шт.

2

BN63818

WASHER,20.57mm ID x 69.85mm OD x 4.76mm Thk

7 GA 304 .81 x 2.75

3шт.

3

BN310420

MOUNTING PLATE

FRONT ENG. MNT.

1шт.

4

BN300407

FLANGE NUT

Flg, 1/2"-13, G8

2шт.

5

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

4шт.

6

BN55235

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

2шт.

7

BN311165

STUD

M16 x 2 x 70

1шт.

9

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

2шт.

10

87639783

WASHER,0.69" ID x 1.75" OD x 0.12" Thk

.68 X 1.75 X .12 HTS DOR

2шт.

11

BN318841

BRACKET

WLDMT, REAR ENG. MNT.

2шт.

12

BN25639

ISOLATOR

Rubber Motor Mount

3шт.

13

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

14

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

8шт.

15

85700693

NUT,5/8" - 11, Gr C

2шт.
