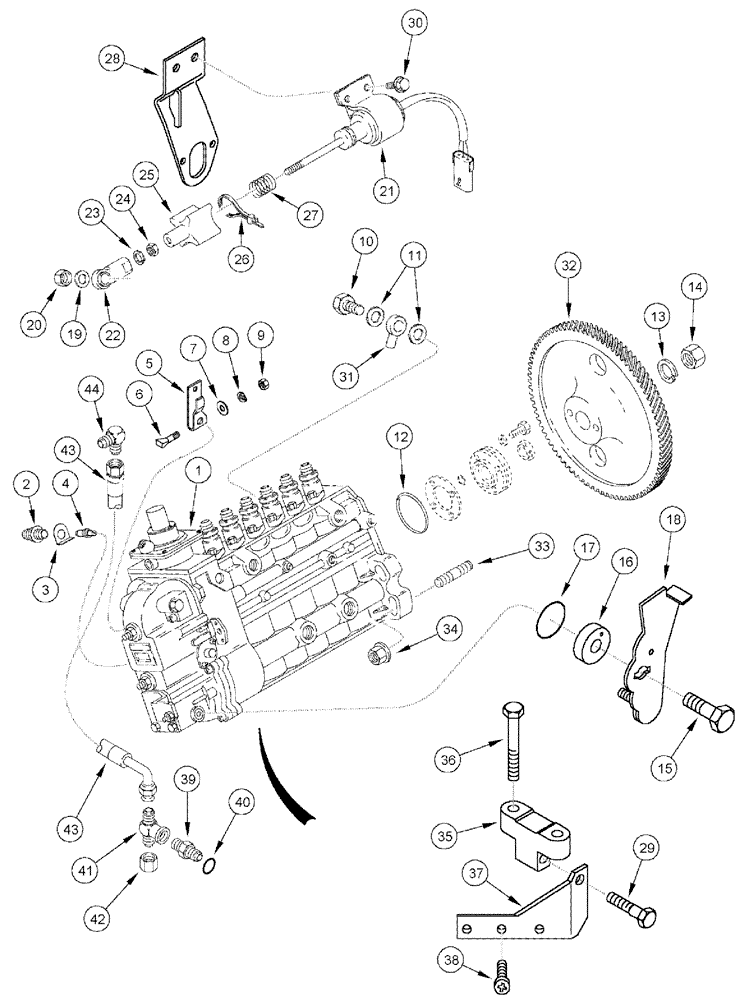

Запчасти Case IH 3185 (03-028) - FUEL INJECTION PUMP & DRIVE (01) - ENGINE

1

J935784

PUMP

ASSEMBLY - FUEL INJECTION, WITH ANEROID

1шт.

1

JR935784

REMAN-INJECTION PUMP

Assembly, Fuel Injection, Component Parts On This Page Do Not Apply To The Remanufactured Assembly

1шт.

1

JC935784

CORE-INJECTION PUMP

Return Part Number, Use This Part Number To Return Pump Core For Credit When Using A Remanufactured Assembly

1шт.

2

J912888

PLUG

TIMING

1шт.

3

J928981

LOCK WASHER

TIMING PLUG

1шт.

4

A77720

PIN

Timing

1шт.

5

1808728C1

LEVER

1шт.

6

1808822C1

THUMB SCREW,M6 x 26mm

1шт.

Throttle lever

1шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

8

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

9

829-1306

NUT,M6, Cl 10

1шт.

10

J932096

VALVE

OVERFLOW

1шт.

11

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - SEALING, SPECIAL, 14 X 20 X 1 MM

2шт.

12

J924605

SEAL

"D" shaped ring

1шт.

13

J920922

LOCK WASHER

1шт.

14

J920921

NUT

M20-1.5

1шт.

15

86624997

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

16

691292C1

RETAINER

Spring

1шт.

17

680187C1

O-RING,2.5mm Thk x 9mm ID

seal

1шт.

18

J935759

LEVER

SHUTOFF VALVE

1шт.

19

J934022

WASHER

FLAT, SPECIAL

1шт.

20

832-10406

NUT,M6 x 1, Cl 8

1шт.

21

J935431

SOLENOID

FUEL SHUTOFF, 12 VOLT

1шт.

22

311099A1

JOINT

BALL

1шт.

23

80682

LOCK WASHER,1/4"

1шт.

24

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

25

J925171

BOOT

PROTECTIVE, PLUNGER

1шт.

26

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

27

251828A1

SPRING

return, shutoff

1шт.

28

J935435

BRACKET

SOLENOID

1шт.

See Fig. 03-002

1шт.

29

86609280

BOLT,Hex Flg, M8 x 45mm, Cl 8.8

1шт.

30

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

31

J933359

CONNECTOR, ELEC

CONNECTOR BANJO, FUEL RETURN

1шт.

32

J931382

GEAR

FUEL PUMP

1шт.

33

86991263

STUD,M10 x 1.5 x 55

4шт.

34

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

35

J4003580

BRACE

FUEL PUMP

1шт.

36

87015919

BOLT,Hvy Hex, M8 x 95mm, Cl 8.8

2шт.

37

J928898

SUPPORT

FUEL PUMP

1шт.

38

J928231

SCREW,Truss Torx, M8 x 1.25 x 25mm, Cl 10.9

ROUND HEAD CAP

2шт.

39

J932321

UNION

NIPPLE - HEX, 1/8 PT X 10 - 1.6 MM STR THREAD

1шт.

40

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

41

J924346

TEE

OIL PRESSURE

1шт.

42

86511869

CAP,7/16" - 20 JIC

1шт.

43

J918536

FLEXIBLE HOSE,295.00 mm

Flexible

1шт.

44

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

1шт.
