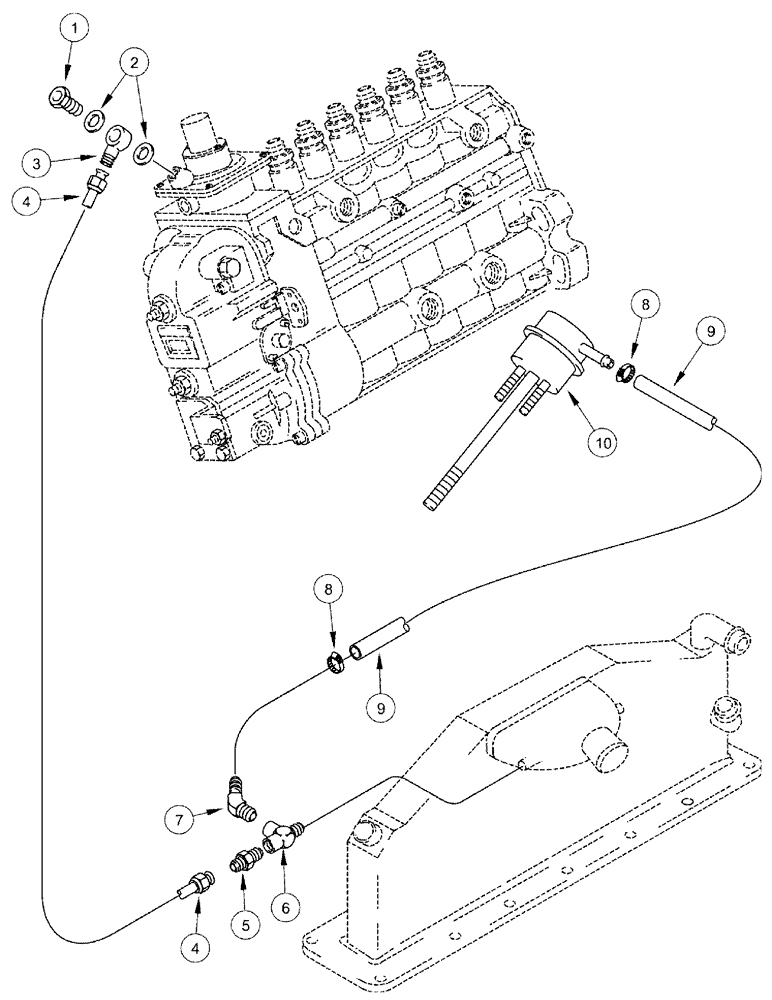

Запчасти Case IH 3185 (03-026) - ANEROID AND WASTEGATE SYSTEM (01) - ENGINE

1

J903035

BANJO BOLT

HEX, 12 - 1.5 X 24 MM

1шт.

2

J935171

SEALING WASHER

SPECIAL, 12 X 19 X 1.5 MM

2шт.

3

J990881

CONNECTION

BANJO

1шт.

4

J991516

FUEL TUBE,6.35 mm OD x 506 mm L

FUEL CONTROL

1шт.

5

J920803

CONNECTOR, ELEC

CONNECTOR ADAPTER - COMPRESSION, SPECIAL

1шт.

6

J930789

TEE

1/8 x 1/8 x 1/8 pipe

1шт.

7

86625232

FITTING,45 Degree, 1/4" Hose x 1/8" NPTF, Barbed

1шт.

8

82039341

CLAMP,12mm - 22mm

#4, 0.25/0.62 Type M Worm

2шт.

9

J991038

HOSE,6.35mm ID x 254mm L

1шт.

10

J594348

ACTUATOR

TURBOCHARGER (SEE FIG. 03-012 FOR MOUNTING PARTS)

1шт.
