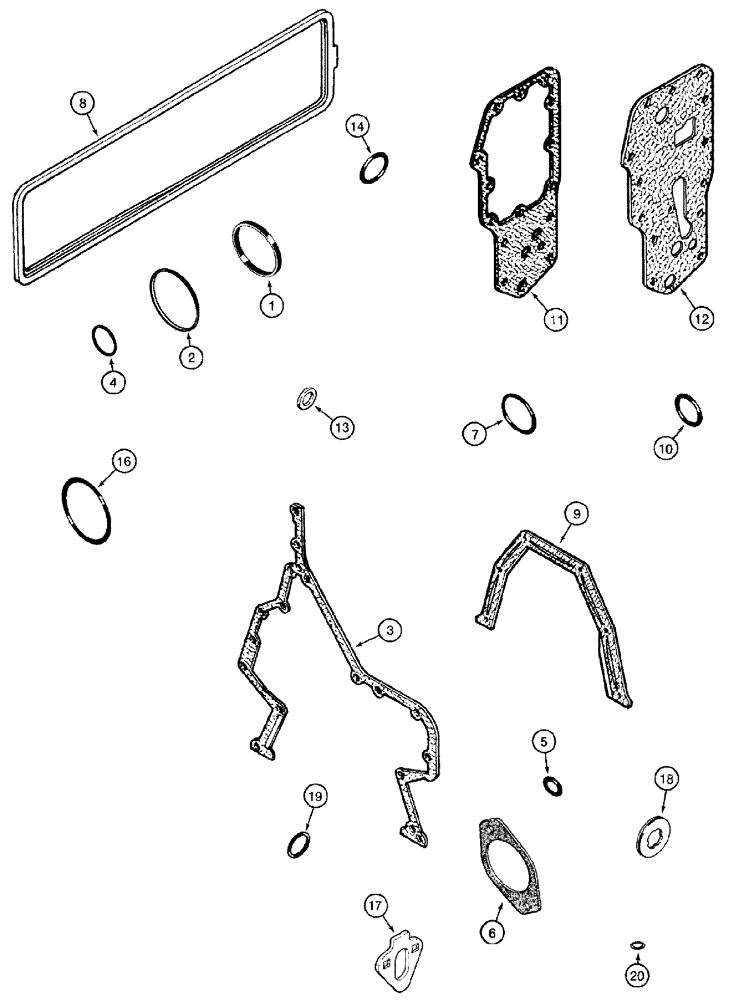

Запчасти Case IH 3185 (03-023) - GASKET KIT, CYLINDER BLOCK (01) - ENGINE

0

A77964

SEAL PACKAGE

KIT Gasket, Cylinder Block

1шт.

For Complete Engine Overhaul, Order (1) Cylinder Block Kit, (1) Valve Grind Kit, Fig. 03-022; (1) Oil Pan Kit, Fig. 03-014 and the Required Cylinder Head Gasket, Ref. 2, Fig. 03-015

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

FRONT ACCESS COVER

1шт.

2

J935032

SEAL

GASKET

1шт.

3

J938156

GASKET,0.79mm Thk

GEAR HOUSING

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, Timing Pin Housing

1шт.

5

J913994

O-RING

SEALING

1шт.

6

J938655

GASKET,1.27mm Thk

COVE

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

Water pump to block

1шт.

8

J284623

GASKET

TAPPET COVER

1шт.

9

J938159

GASKET

REAR COVER RETAINER, CRANKSHAFT

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 MM ID, WATER INLET CONNECTION

1шт.

11

87549580

GASKET,1.02mm Thk

Oil Cooler Core, Cummins

1шт.

11a

J942914

GASKET

OIL COOLER CORE

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

12

J942915

GASKET

FILTER HEAD

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

SEALING, PLUG, OIL PAN

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 MM (1-1/2 INCH) ID

1шт.

Not used in this application

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING FLYWHEEL HOUSING TO BLOCK

1шт.

17

J939258

GASKET,1.21mm Thk

lift pump

1шт.

18

J928759

SEALING WASHER

COVER BOLT, TAPPET COVER

8шт.

19

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

Flywheel backing plate plug

1шт.

20

J929457

O-RING

FUEL FILTER HEAD

1шт.
