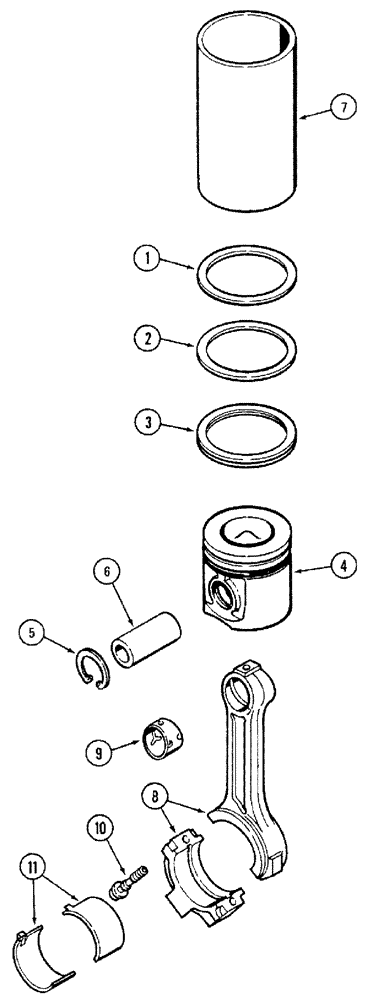

Запчасти Case IH 3185 (03-021) - PISTON & CONNECTING ROD (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

RING - COMPRESSION, TOP

1шт.

1a

J802757

KIT

PISTON, STANDARD

6шт.

1b

J802750

PISTON RING SET

STANDARD

1шт.

2

NSS

NOT SOLD SEPARAT

RING - COMPRESSION, MIDDLE

1шт.

3

NSS

NOT SOLD SEPARAT

RING - OIL, BOTTOM

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - CYLINDER, STANDARD

1шт.

5

J920691

SPECIAL RING

SNAP

2шт.

5a

J802758

KIT

PISTON, 0.5 MM OVERSIZE

6шт.

5b

J802863

PISTON RING SET

KIT, 0.5 MM OVERSIZE

1шт.

1

NSS

NOT SOLD SEPARAT

RING - COMPRESSION, TOP

1шт.

2

NSS

NOT SOLD SEPARAT

RING - COMPRESSION, MIDDLE

1шт.

3

NSS

NOT SOLD SEPARAT

RING - OIL, BOTTOM

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - CYLINDER, 0.5 MM OVERSIZE

1шт.

5

J920691

SPECIAL RING

SNAP

2шт.

5a

J802759

KIT

PISTON, 1.00 MM OVERSIZE

6шт.

5b

J802864

PISTON RING SET

KIT, 1.00 MM OVERSIZE

1шт.

1

NSS

NOT SOLD SEPARAT

RING - COMPRESSION, TOP

1шт.

2

NSS

NOT SOLD SEPARAT

RING - COMPRESSION, MIDDLE

1шт.

3

NSS

NOT SOLD SEPARAT

RING - OIL, BOTTOM

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - CYLINDER, 1.00 MM OVERSIZE

1шт.

5

J920691

SPECIAL RING

SNAP

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

PISTON

6шт.

7

J904166

SLEEVE

LINER - PISTON, USED ONLY IN ENGINE BLOCK REPAIR, WHEN LINER IS INSTALLED, USE J802757 PISTON KIT

1шт.

8a

84145405

ROD, CONNECTING

NEW

6шт.

8a

84145405R

REMAN-CONNECTING ROD

6шт.

8a

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

9

J941476

BUSHING

Connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - HEX, SPECIAL

2шт.

11

87425525

CRANKSHAFT BEARING

Kit - Upper and Lower Set, Standard, See Service Bulletin

6шт.

11

A77465

BEARING SET

Kit - Upper and Lower Set, Standard, See Service Bulletin

6шт.

11

A77466

BEARING SET

KIT - Upper and Lower Set, 0.25 mm Undersize, See Service Bulletin

6шт.

11

A77467

BEARING LINER

KIT - Upper and Lower Set, 0.5 mm Undersize, See Service Bulletin

6шт.

11

A77468

BEARING SET

KIT - Upper and Lower Set, 0.75 mm Undersize, See Service Bulletin

6шт.

11

A77469

BEARING SET

KIT - Upper and Lower Set, 1.0 mm Undersize, See Service Bulletin

6шт.
